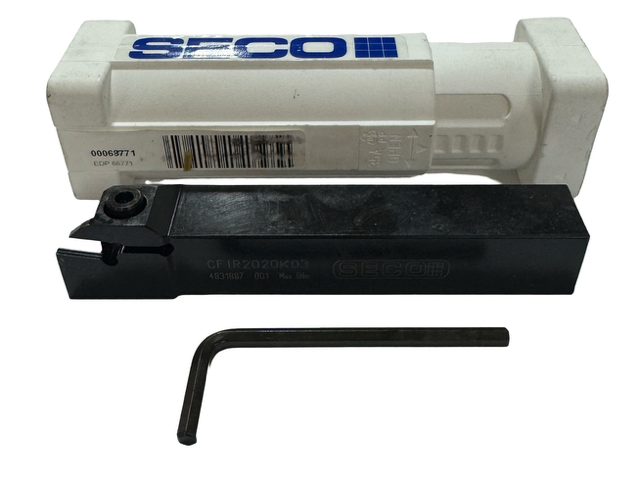

Seco Indexable Turning Tool Holder CFIR2020K03 Made in Sweden

PRODUCT DESCRIPTION

B	Shank width	0.787 in
Barcode	Product barcode	00662885039461
CDX	Cutting depth maximum	0.354 in
CSP	Coolant supply property	No internal coolant
CTMS	Connection text machine side	2020
CTWS	Connection text workpiece side	LC..1603..
CW	Cutting width	0.118 in
GTIN	Global trade item number	00662885039461
H	Height of tool holder shank	0.787 in
HAND	Direction of cutting	R
KAPR	Tool cutting edge angle	90.000 deg
KAPRE	Tool cutting edge angle in feed direction end	90.000 deg
KAPRS	Tool cutting edge angle in feed direction side	90.000 deg
LF	Functional length	4.921 in
LH	Head length	1.102 in
ShankType	Shank type	Square shank
TQ	Torque	53.104 in.lbs
VER	Version (Internal/External/Both)	External
