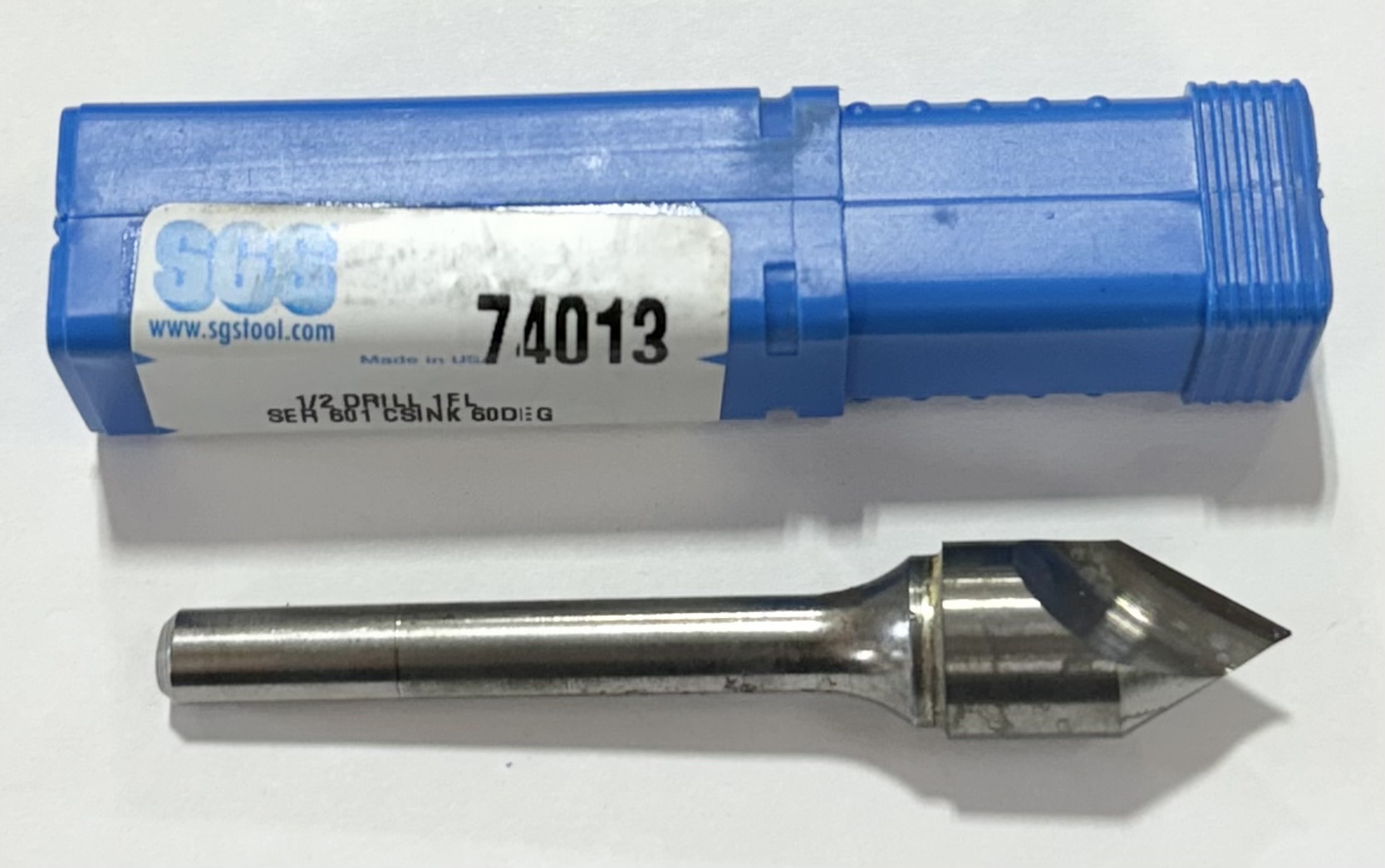

SGS 1/2" Singe Flute 60 Degree Solid Carbide Countersink USA Made 74013

PRODUCT DESCRIPTION

Series Description	General Application Countersink
High Performance	No
Unit (inch/mm)	inch
Number of Flutes	1
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Size	1/2"
Cutting Diameter (DC) (Decimal Inch)	0.5000
Cutting Diameter (DC) (Fractional Inch)	1/2
Cutting Diameter (DC) (mm)	12.70
Shank Diameter (DCON) (Decimal Inch)	0.2500
Shank Diameter (DCON) (mm)	6.35
Flute Length (LCF) (Decimal Inch)	0.3120
Flute Length (LCF) (mm)	7.92
Overall Length (OAL) (Decimal Inch)	2.8700
Overall Length (OAL) (mm)	72.90
Shank Length (LS) (Decimal Inch)	1.7500
Shank Length (LS) (Fractional Inch)	1-3/4
Point Angle (Degree)	60
Cutting Diameter (DC) Tolerance (Decimal Inch)	+.00300 / -.00000
Cutting Diameter (DC) Tolerance (mm)	+.0762 / -.0000

Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Neutral
Helix Angle	Right Spiral
Helix Angle (Degree)	0
Variable Helix	No
Center Cutting	No
Chip Breaker	No
Number of Margins	1
Shipping Weight	0.0880
Series	601
Weldon Flat	No
US Stock	24
Shank Length (LS) (mm)	44.45
Shank Diameter (DCON) (Fractional Inch)	1/4
Centerline (α) Angle (Degree)	30.0
Coating Description	Bright/Uncoated
