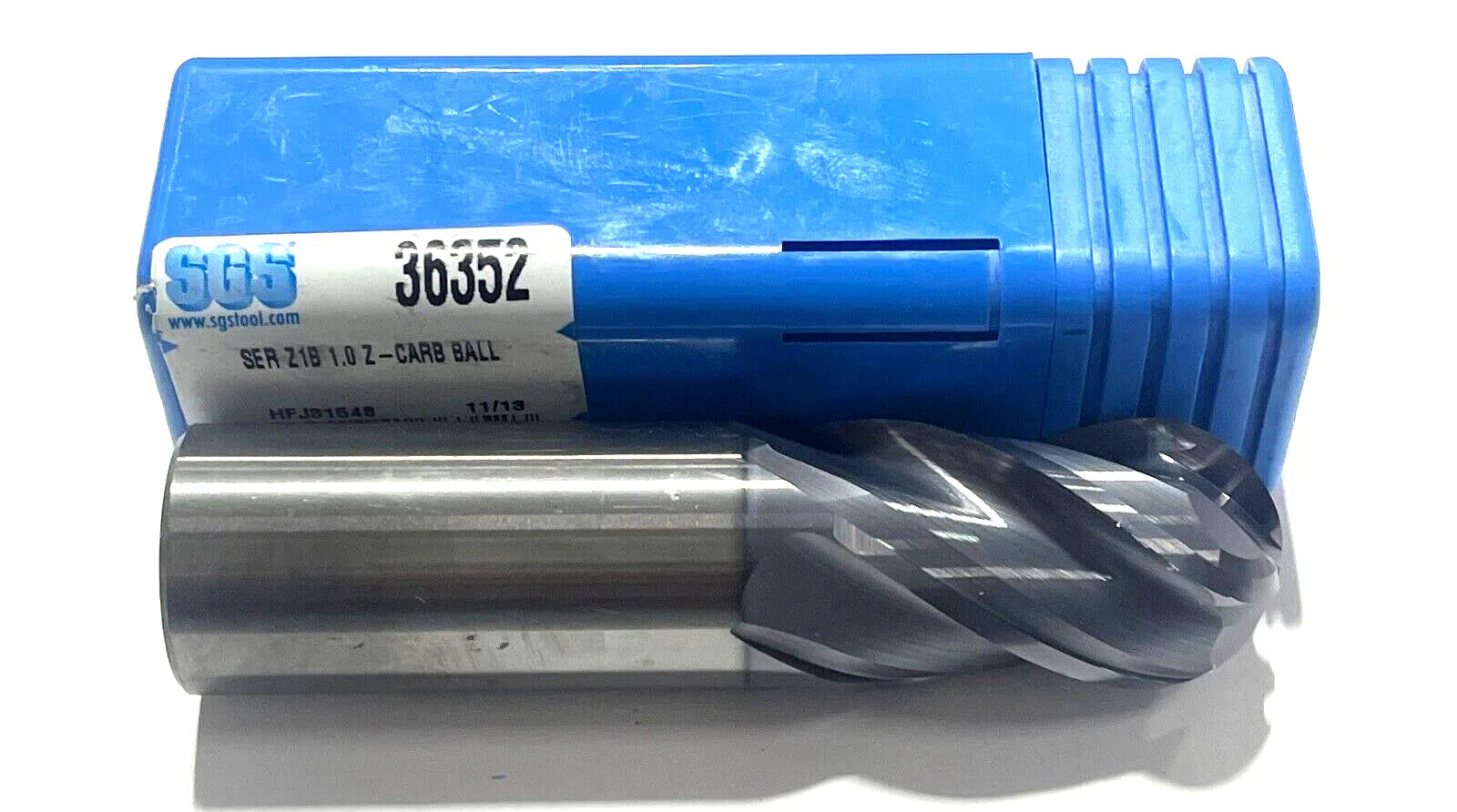

SGS 1" Carbide Ball Nose End Mill AlTiN Coating Z-Carb High Performance 4FL USA
SGS 1" Carbide Ball Nose End Mill AlTiN Coating Z-Carb High Performance 4FL USA
Regular price
$96.09 USD
Regular price
$0.00 USD
Sale price
$96.09 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
SGS
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 1″ | End Shape | Ball Nose |
| Connection Diameter Machine Side (DCONMS) | 1″ | Flute Type | Spiral |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | ALTIN | Series/List # | Z1B |
| Flute Count (NOF) | 4 | Shank Length (LS) | 2-1/2″ |
| Flute Helix Angle (FHA) | 38 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Single / Double End | Single End |
