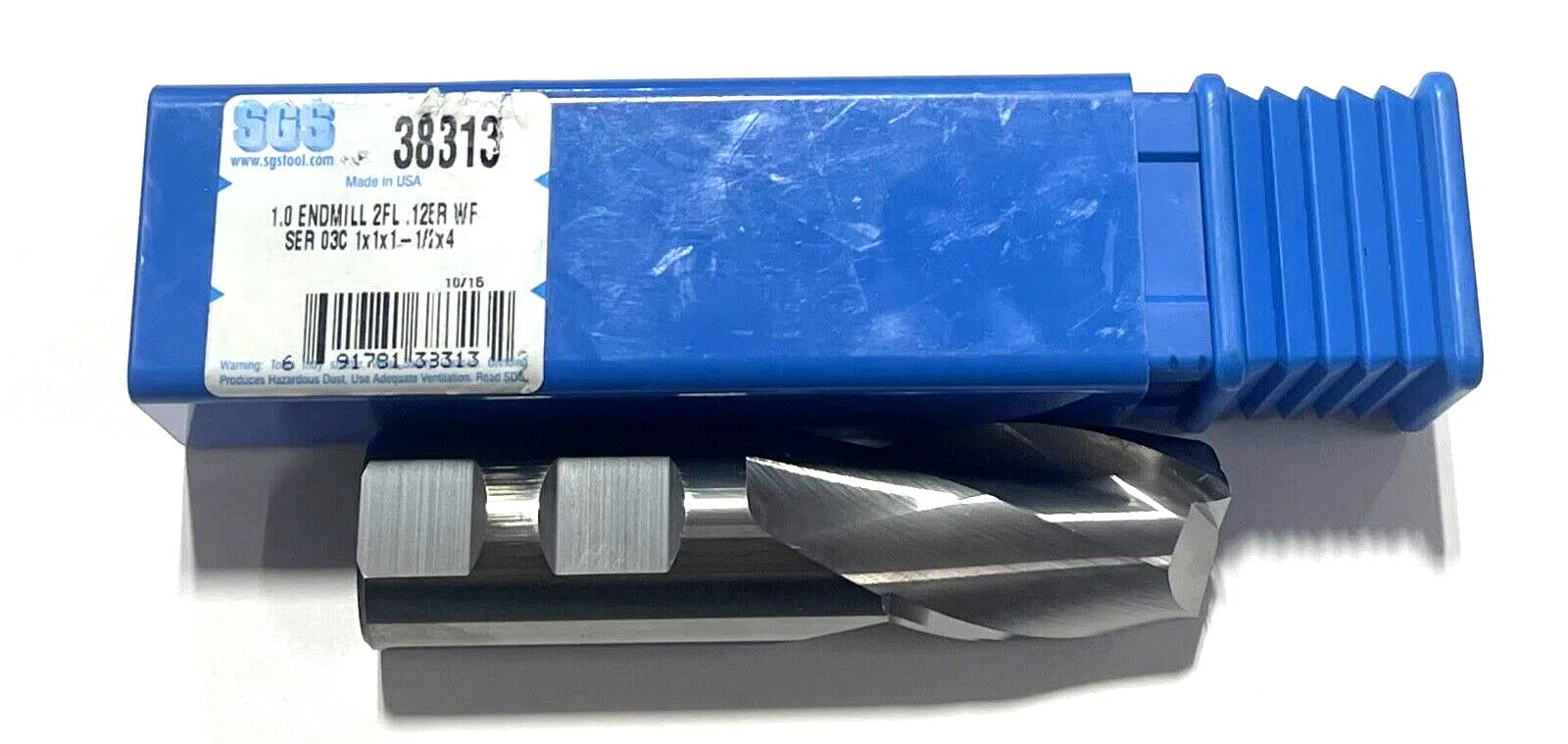

SGS 1" Carbide End Mill .125" Corner Radius 2 Flute 30° Helix USA Made 38313
SGS 1" Carbide End Mill .125" Corner Radius 2 Flute 30° Helix USA Made 38313
Regular price
$76.44 USD
Regular price
$0.00 USD
Sale price
$76.44 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
SGS
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1″ | Shank Type | Flat |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Usable Length (LU) | 1.7″ |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 1/8″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 03C |
