Michigan Wholesale Tool Supply

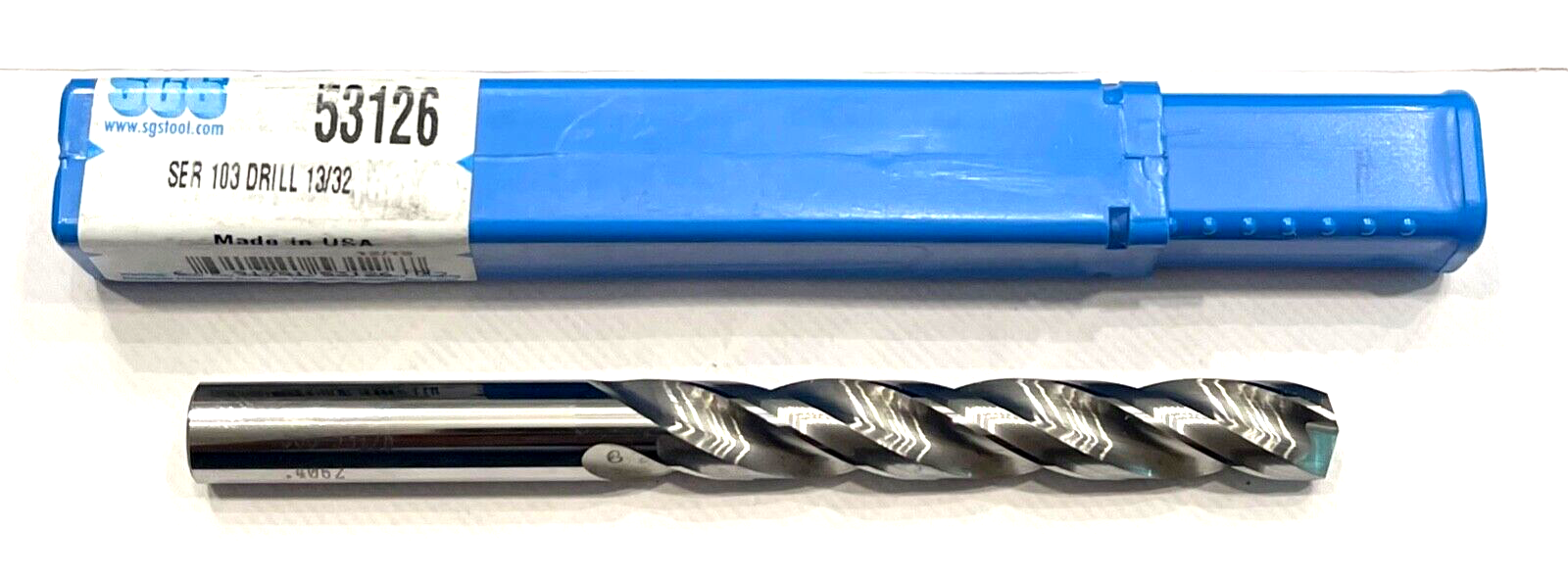

SGS 13/32" Solid Carbide Drill 5xD High Performance 3 Flute 150° Point USA Made
SGS 13/32" Solid Carbide Drill 5xD High Performance 3 Flute 150° Point USA Made
Regular price
$24.75 USD
Regular price
$0.00 USD
Sale price
$24.75 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
SGS
USA MADE
HIGH PERFORMANCE SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 13/32″ | Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/32″ | Length Below Shank | 1-5/8″ |
| Decimal Equivalent | 0.4063″ | Flute Type | Spiral |
| Length Group | 5xD | Point Shape | Point |
| Coating | Bright | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 13/32″ | Series/List # | 103 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 2.2969″ |
| Point Angle (SIG) | 150 Degrees | Length Chip Flute (LCF) | 2-7/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 4-1/2″ |
| Shank Type | Round | Flute Count (NOF) | 3 |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
Product Features
Remarks
•Solid Carbide 3 Flute High Performance Drills
•Solid Carbide (K20-40) 10% Micrograin Carbide 150 Degree Point 30 Degree helix series 229 America's Best
•Recommended for increased speeds and feeds when drilling aluminum, cast iron and other easy to machine materials.
•Greater hole dimensional accuracy at higher production rates
•Reduces drill deflection compared to HSS, Cobalt and other carbide drills
•150 Degree Point
