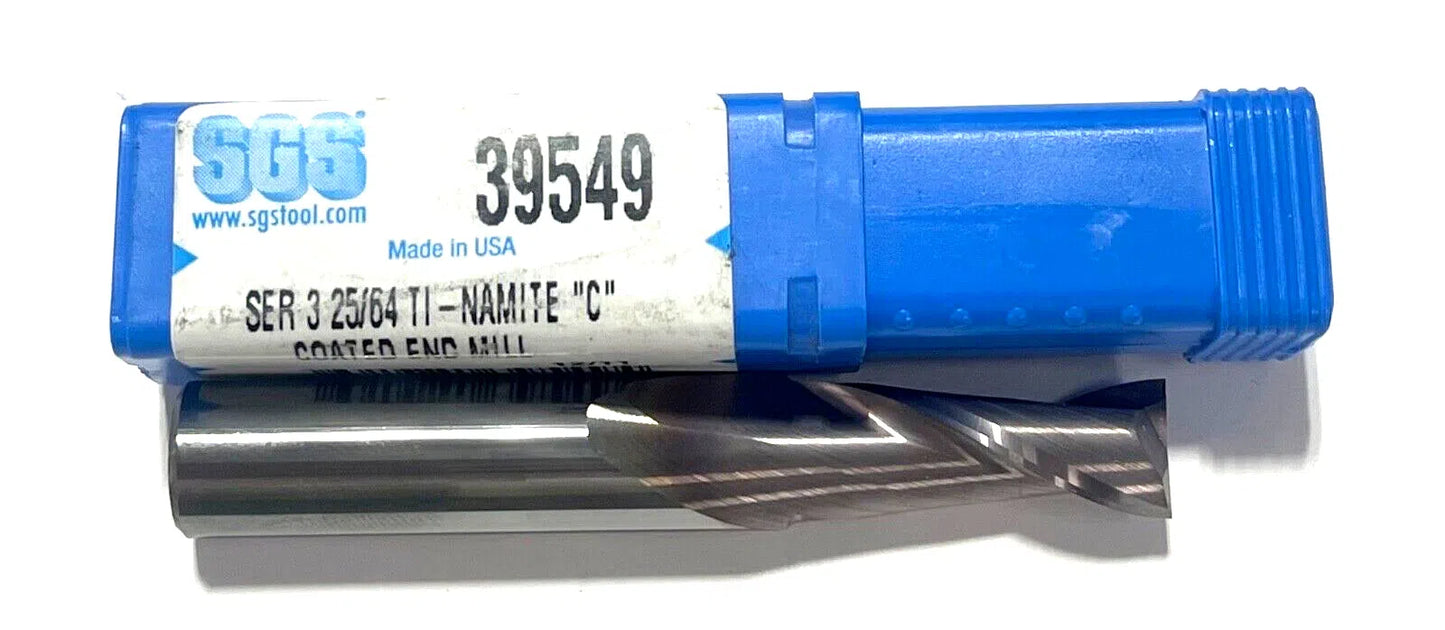

SGS 25/64" Carbide End Mill TiCN Coating 2 Flute USA Made 39549
SGS 25/64" Carbide End Mill TiCN Coating 2 Flute USA Made 39549
Regular price
$15.28 USD
Regular price
$0.00 USD
Sale price
$15.28 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
SGS
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 25/64″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Usable Length (LU) | 1-3/4″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-3/4″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TC | Decimal Equivalent | 0.390625″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 03S |
| Shank Type | Round |
