Michigan Wholesale Tool Supply

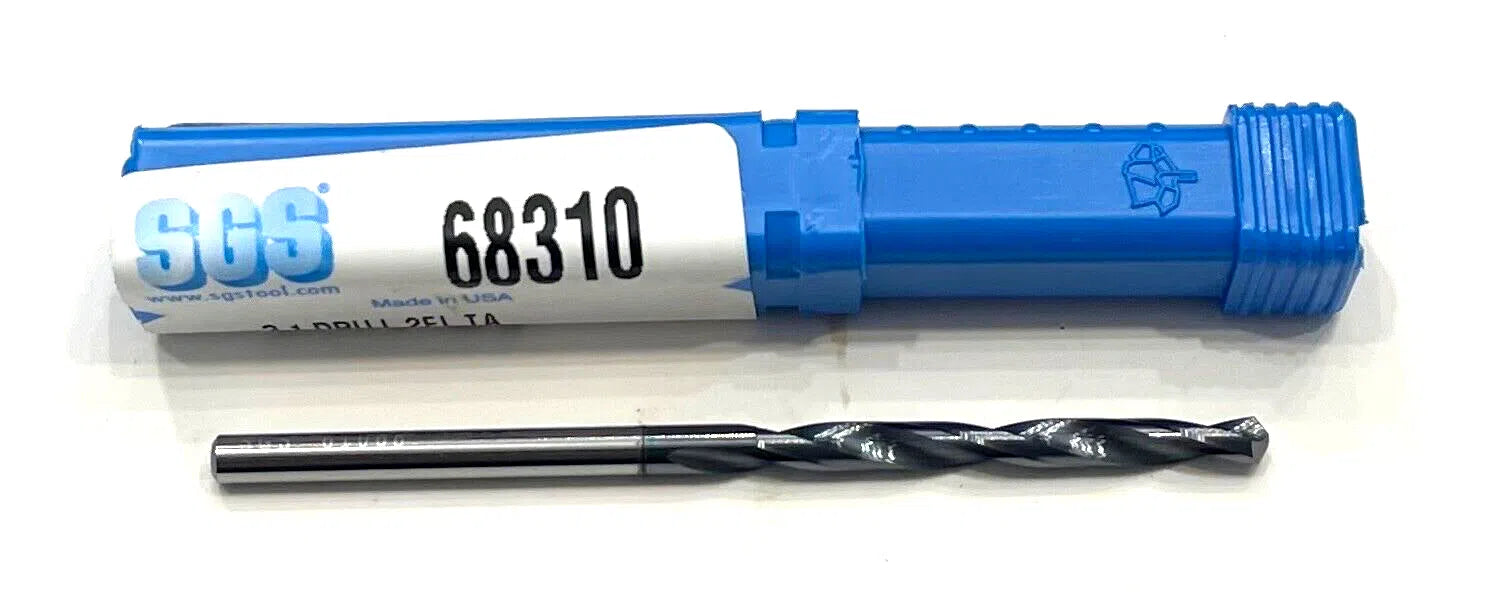

SGS 3.1mm Solid Carbide Drill 5xD TA Coating 2 Flute 118° Point USA Made 68310
SGS 3.1mm Solid Carbide Drill 5xD TA Coating 2 Flute 118° Point USA Made 68310
Regular price
$7.64 USD
Regular price
$0.00 USD
Sale price
$7.64 USD
Unit price
/
per
Shipping calculated at checkout.
13 in stock
Couldn't load pickup availability
SGS TOOL COMPANY
USA MADE
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 3.1 mm | Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.1 mm | Length Below Shank | 29 mm |
| Length Group | 5xD | Flute Type | Spiral |
| Coating | TA | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3.1 mm | Series/List # | 101 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 28 mm |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 36 mm |
| Flute Helix Angle (FHA) | 20 Degrees | Overall Length (OAL) | 65 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
