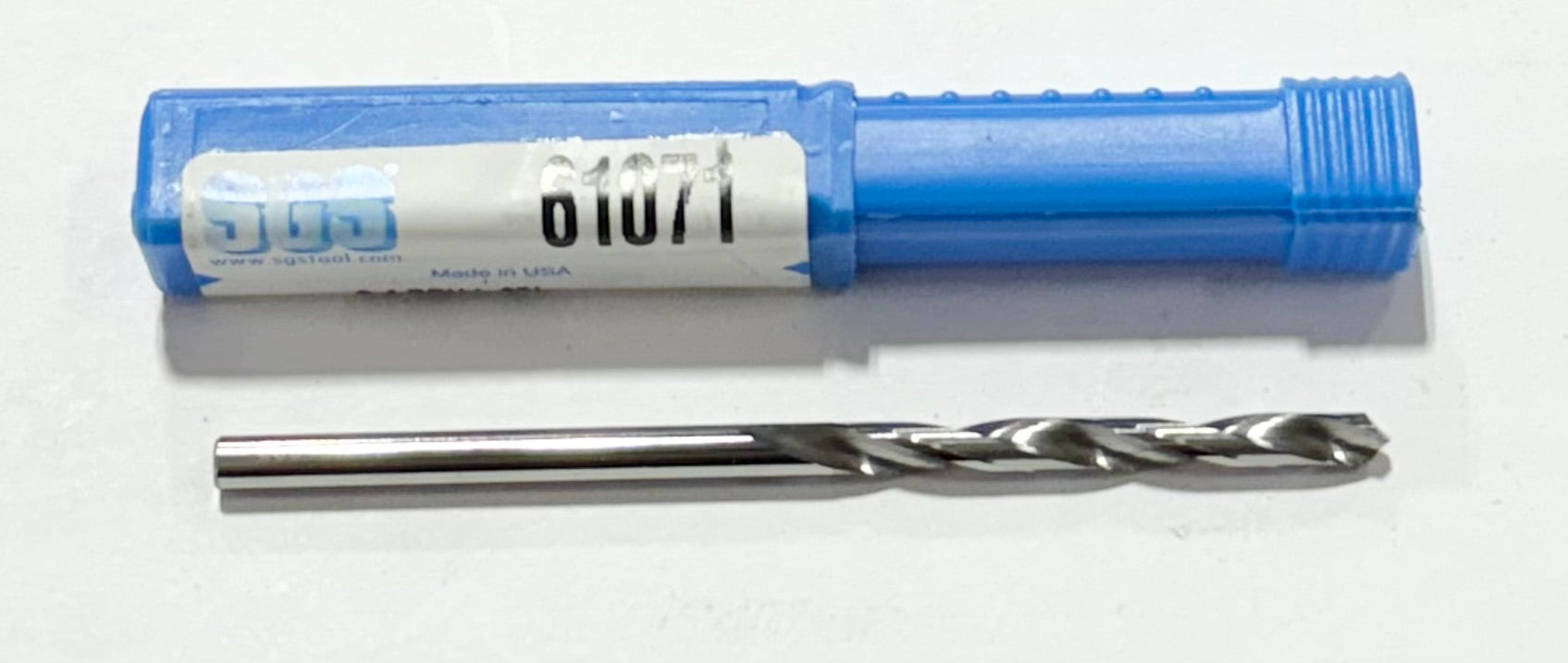

SGS 3.4mm Solid Carbide Drill Slow Spiral 2 Flute USA Made

SGS 3.4mm Solid Carbide Drill Slow Spiral 2 Flute USA Made

$4.68 USD
$0.00 USD $4.68 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Out of stock
eries Description General Application Drill
High Performance No
Unit (inch/mm) mm
Number of Flutes 2
Primary Workpiece Material (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material (H) Hardened Materials
Reach (xD) 5xD
Size 3.40mm
Cutting Diameter (DC) (Decimal Inch) 0.1339
Cutting Diameter (DC) (mm) 3.40
Shank Diameter (DCON) (Decimal Inch) 0.1339
Shank Diameter (DCON) (mm) 3.40
Flute Length (LCF) (Decimal Inch) 1.5354
Flute Length (LCF) (mm) 39.00
Overall Length (OAL) (Decimal Inch) 2.7559
Overall Length (OAL) (mm) 70.00
Shank Length (LS) (Decimal Inch) 1.2200
Point Angle (Degree) 118
Cutting Diameter (DC) Tolerance (Decimal Inch) +.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm) +.0000 / -.0127
Shank Diameter (DCON) Tolerance (ISO) h6
Shank Type Straight
Coolant Option External Coolant
Coating Description Bright/Uncoated
Additional Geometry Right Hand Cut Direction (RHC)
Helix Angle Right Spiral
Helix Angle (Degree) 20
Variable Helix No
Center Cutting No
Chip Breaker No
DIN Standard DIN 338
Number of Margins 2
Shipping Weight 0.0160
Series 101
Weldon Flat No
