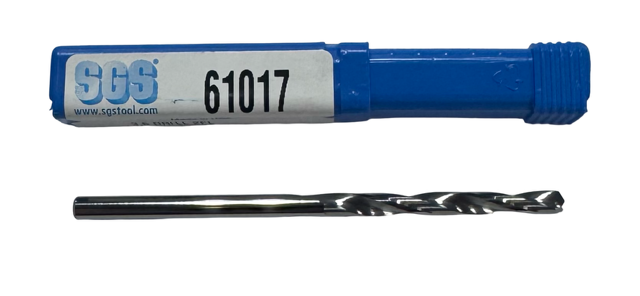

SGS 3.5mm Solid Carbide Drill 5xD 118° 2 Flute USA Made
SGS 3.5mm Solid Carbide Drill 5xD 118° 2 Flute USA Made
Regular price
$8.79 USD
Regular price
$0.00 USD
Sale price
$8.79 USD
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $25 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Quantity
Low stock: 3 left
Couldn't load pickup availability
SGS 3.5mm Solid Carbide Drill 5xD 118° 2 Flute USA Made
PRODUCT DESCRIPTION
| Description | SC Drill; 3.5 mm Dia. x 3.5 mm Shank Dia. x 70 mm OAL x 39 mm LCF ; 118 Degrees ; 5xD ; Spiral Flute ; Uncoated ; Series 101 |
|---|---|
| Brand | Kyocera SGS Precision Tools |
| Coating | Uncoated |
| Connection Diameter Machine Side Dconms | 3.5 mm |
| Coolant Supply Property CSP | External |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1378" |
| Drill Bit Size Cutting Diameter DC | 3.5 mm |
| Drill Bit Size Cutting Diameter DC Metric | 3.5 mm |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 20 Degrees |
| Flute Type | Spiral |
| Length Chip Flute LCF | 39 mm |
| Length Group | 5xD |
| Measurement Type | Metric |
| Overall Length Oal | 70 mm |
| Point Angle Sig | 118 Degrees |
| Serieslist | 101 |
| Shank Type | Round |
| Tool Type | Drill |
| Usable Length Lu | 31 mm |
