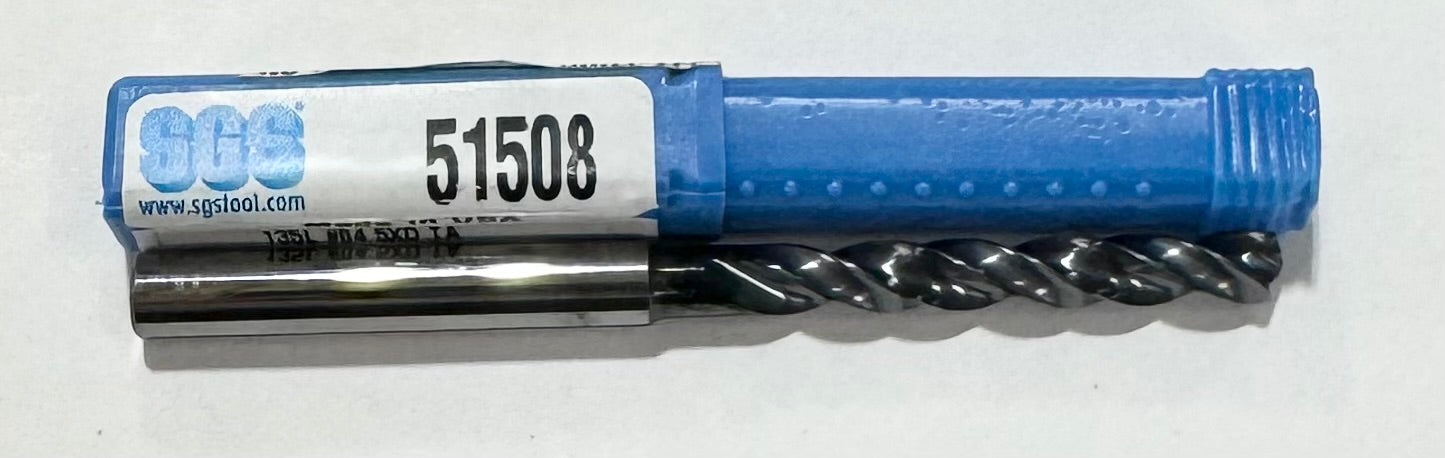

SGS #4 Solid Carbide Drill 5xD TA Coating 145 Degree Point USA Made
SGS #4 Solid Carbide Drill 5xD TA Coating 145 Degree Point USA Made
Regular price
$53.80 USD
Regular price
$0.00 USD
Sale price
$53.80 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
SGS #4 Solid Carbide Drill 5xD TA Coating 145 Degree Point USA Made
PRODUCT DESCRIPTION
| Series Description | Hi-PerCarb 135 |
|---|---|
| High Performance | Yes |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(H) Hardened Materials |
| Secondary Workpiece Material | (K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Reach (xD) | 5xD |
| Size | #4 |
| Cutting Diameter (DC) (Decimal Inch) | 0.2090 |
| Cutting Diameter (DC) (mm) | 5.31 |
| Cutting Diameter (DC) (Wire) | #4 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Usable Length (LU) (Fractional Inch) | 1-37/64 |
| Flute Length (LCF) (Decimal Inch) | 1.7500 |
| Flute Length (LCF) (Fractional Inch) | 1-3/4 |
| Flute Length (LCF) (mm) | 44.45 |
| Overall Length (OAL) (Decimal Inch) | 3.2500 |
| Overall Length (OAL) (Fractional Inch) | 3-1/4 |
| Overall Length (OAL) (mm) | 82.55 |
| Shank Length (LS) (Decimal Inch) | 1.4375 |
| Shank Length (LS) (Fractional Inch) | 1-7/16 |
| Point Angle (Degree) | 145 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00016 / +.00063 |
|---|---|
| Cutting Diameter (DC) Tolerance (mm) | +.0041 / +.0160 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 32 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Number of Margins | 4 |
