Low stock: 3 left

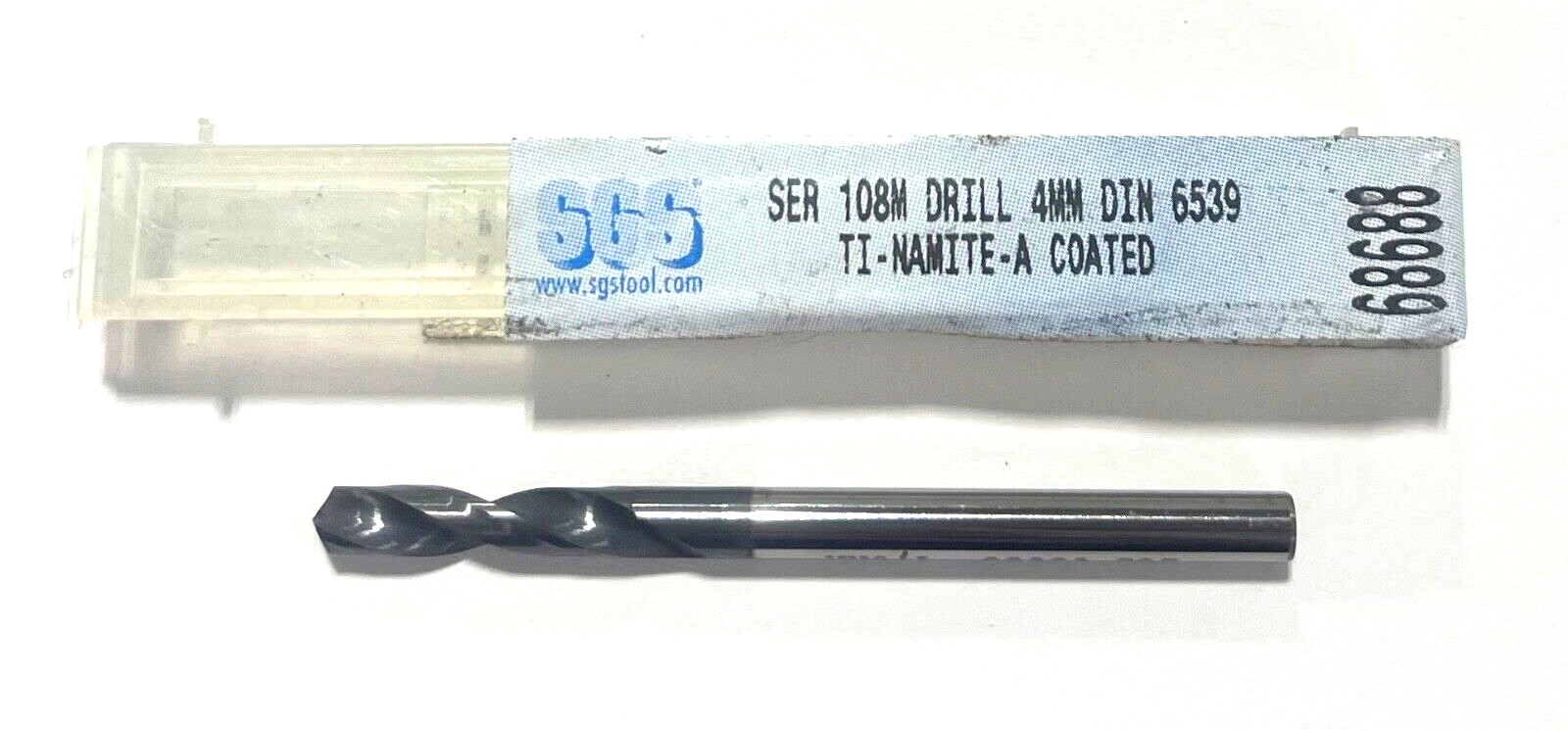

SGS 4mm Solid Carbide Drill AlTiN Coating 2 Flute 145° Point USA Made 68688

PRODUCT DESCRIPTION

SGS

SOLID CARBIDE DRILL

USA MADE

Series Description	General Application Drill
High Performance	No
Unit (inch/mm)	mm
Number of Flutes	2
Primary Workpiece Material	(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Reach (xD)	3xD
Size	4.00mm
Cutting Diameter (DC) (Decimal Inch)	0.1575
Cutting Diameter (DC) (mm)	4.00
Shank Diameter (DCON) (Decimal Inch)	0.1575
Shank Diameter (DCON) (mm)	4.00
Usable Length (LU) (Decimal Inch)	0.6693
Usable Length (LU) (mm)	17.00
Flute Length (LCF) (Decimal Inch)	0.8661
Flute Length (LCF) (mm)	22.00
Overall Length (OAL) (Decimal Inch)	2.1654
Overall Length (OAL) (mm)	55.00
Shank Length (LS) (Decimal Inch)	1.3640
Point Angle (Degree)	145

Cutting Diameter (DC) Tolerance (Decimal Inch)	+.00000 / -.00047
Cutting Diameter (DC) Tolerance (mm)	+.0000 / -.0119
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Coating Description	Ti-NAMITE-A (AlTiN)
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	27
Variable Helix	No
Center Cutting	No
Chip Breaker	No
DIN Standard	DIN 6539
Number of Margins	2
Shipping Weight	0.0230
Series	108
Weldon Flat	No
