Michigan Wholesale Tool Supply

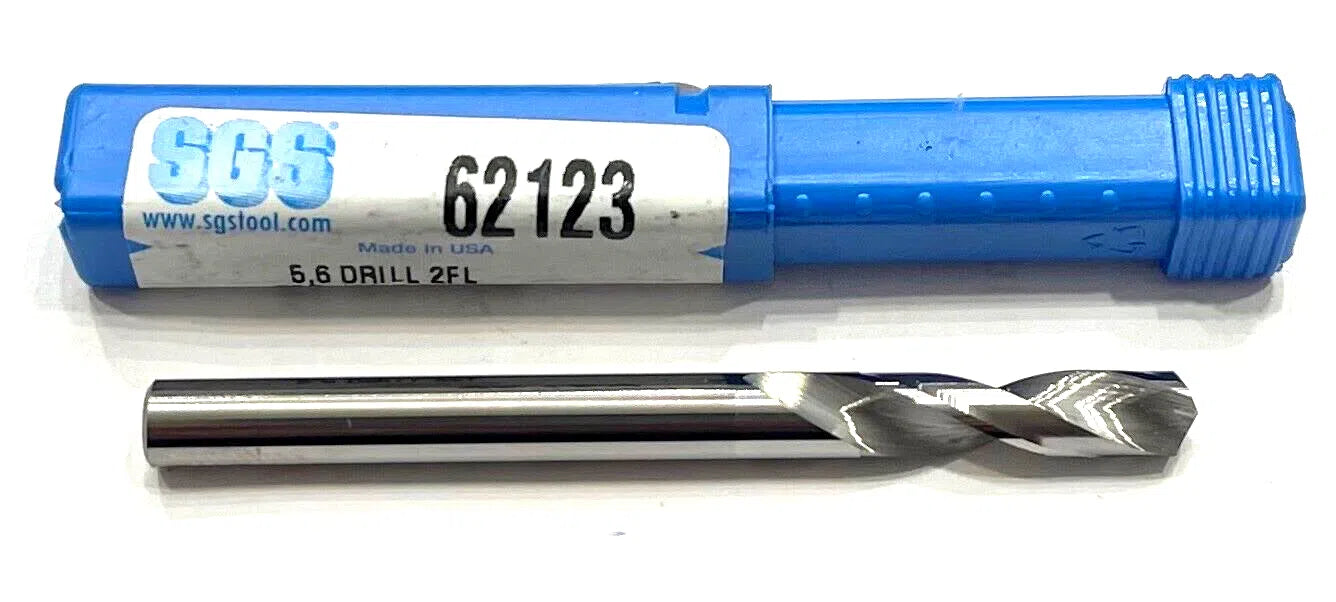

SGS 5.6mm Solid Carbide Drill 3xD 2 Flute 145° Point USA Made 62123
SGS 5.6mm Solid Carbide Drill 3xD 2 Flute 145° Point USA Made 62123
Regular price
$10.92 USD
Regular price
$0.00 USD
Sale price
$10.92 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
SGS
USA MADE
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 5.6 mm | Tool Type | Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.6 mm | Length Below Shank | 39 mm |
| Length Group | 3xD | Flute Type | Spiral |
| Coating | Uncoated | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 5.6 mm | Series/List # | 108 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 21 mm |
| Point Angle (SIG) | 145 Degrees | Length Chip Flute (LCF) | 28 mm |
| Flute Helix Angle (FHA) | 27 Degrees | Overall Length (OAL) | 66 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
