Michigan Wholesale Tool Supply

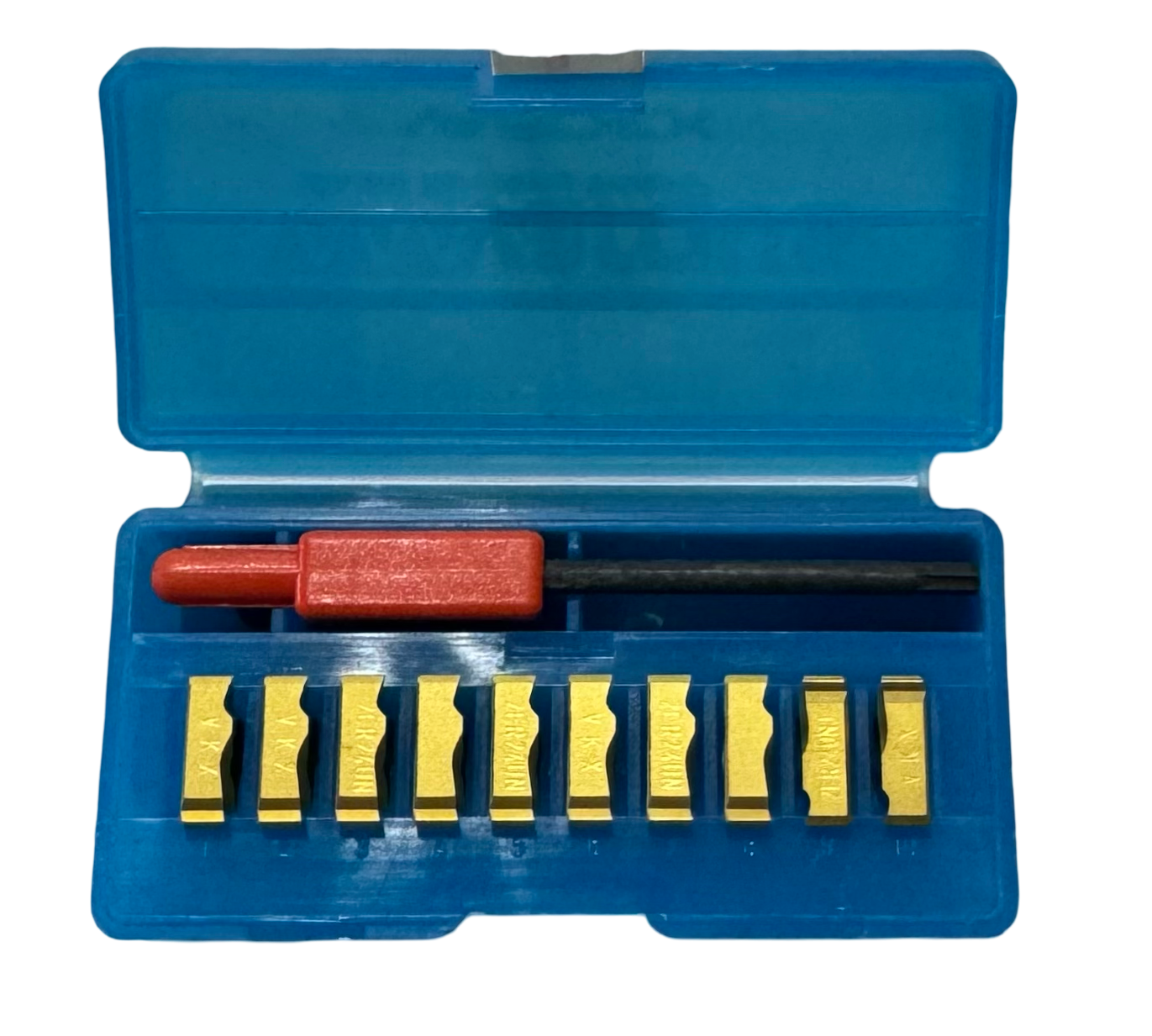

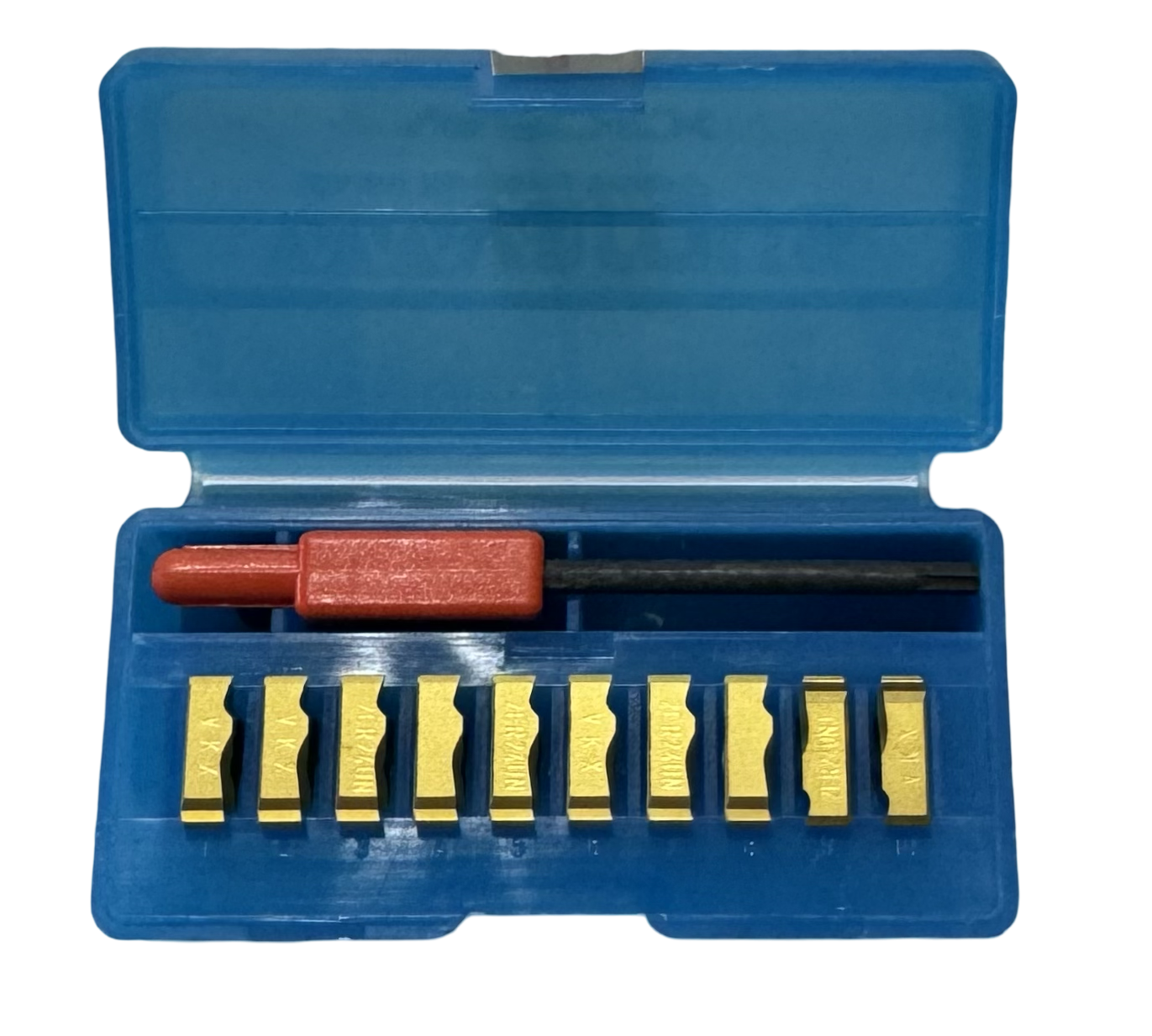

Vardex 2ER24UNVKX Carbide External LayDown Threading Inserts 10 Pack
Vardex 2ER24UNVKX Carbide External LayDown Threading Inserts 10 Pack
Regular price
$42.99 USD
Regular price
$0.00 USD
Sale price
$42.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Vardex 2ER24UNVKX Carbide External LayDown Threading Inserts 10 Pack
PRODUCT DESCRIPTION
Specifications
| Insert Style | 2ER |
| Insert Size Code | 2 |
| Insert Material | Carbide |
| Manufacturer Grade | VKX |
| Threads Per Inch | 24 |
| Thread Type | External |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Thickness (mm) | 3.17 |
| Included Angle | 60 |
| Series | 2ER |
| Coating Process | PVD |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0063 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Iso Code | 2ER24UN |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0280 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0310 |
