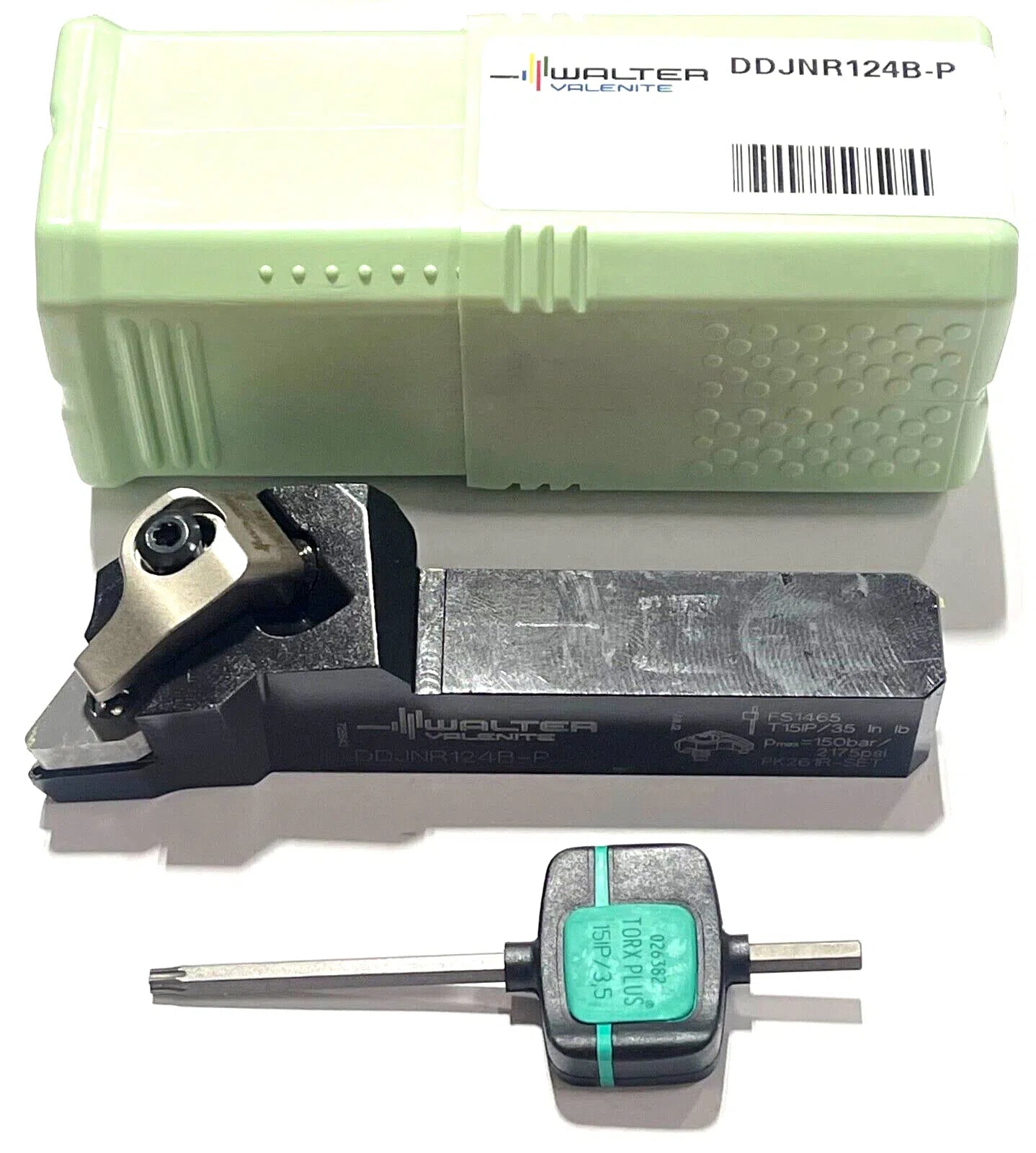

Walter Indexable Turning Toolholder DDJNR124B-P Clamp 19.05 x 19.05 Shank
Walter Indexable Turning Toolholder DDJNR124B-P Clamp 19.05 x 19.05 Shank
Regular price
$49.86 USD
Regular price
$0.00 USD
Sale price
$49.86 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Out of stock
Couldn't load pickup availability
WALTER VALENITE
INDEXABLE TURNING TOOL HOLDER
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DDJN-P |
| Toolholder Style | DDJN |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Series | DDJN-ISO-AUSSEN-INCH-P |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.9690 |
| Head Length (mm) | 50.00 |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Standards | ISO; ANSI |
| Toolholder Material | Steel |
