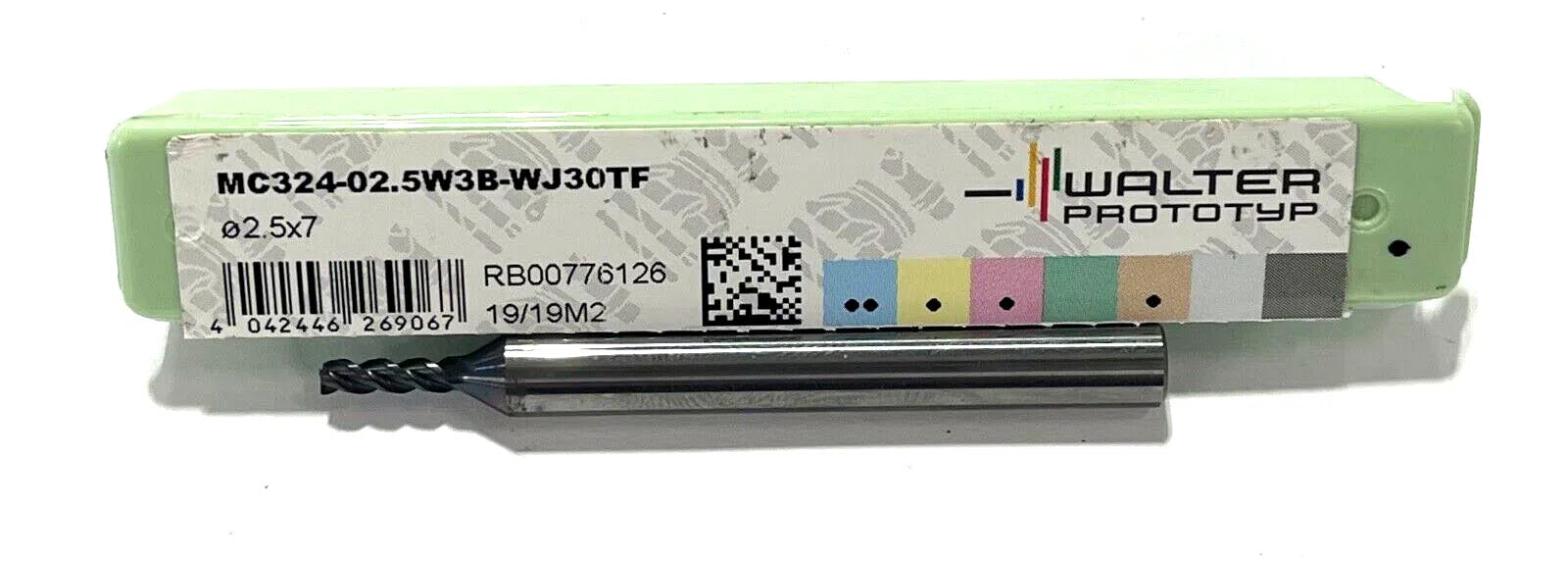

Walter Prototyp 2.5mm Carbide End Mill AlTiN Coating 3 Flute 45° Helix 6959741
Walter Prototyp 2.5mm Carbide End Mill AlTiN Coating 3 Flute 45° Helix 6959741
Regular price
$10.55 USD
Regular price
$0.00 USD
Sale price
$10.55 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
WALTER PROTOTYP
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 2.5 mm | Usable Length (LU) | 7 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7 mm | Grade | WJ30TF |
| Overall Length (OAL) | 57 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC324 |
| End Shape | Square |
