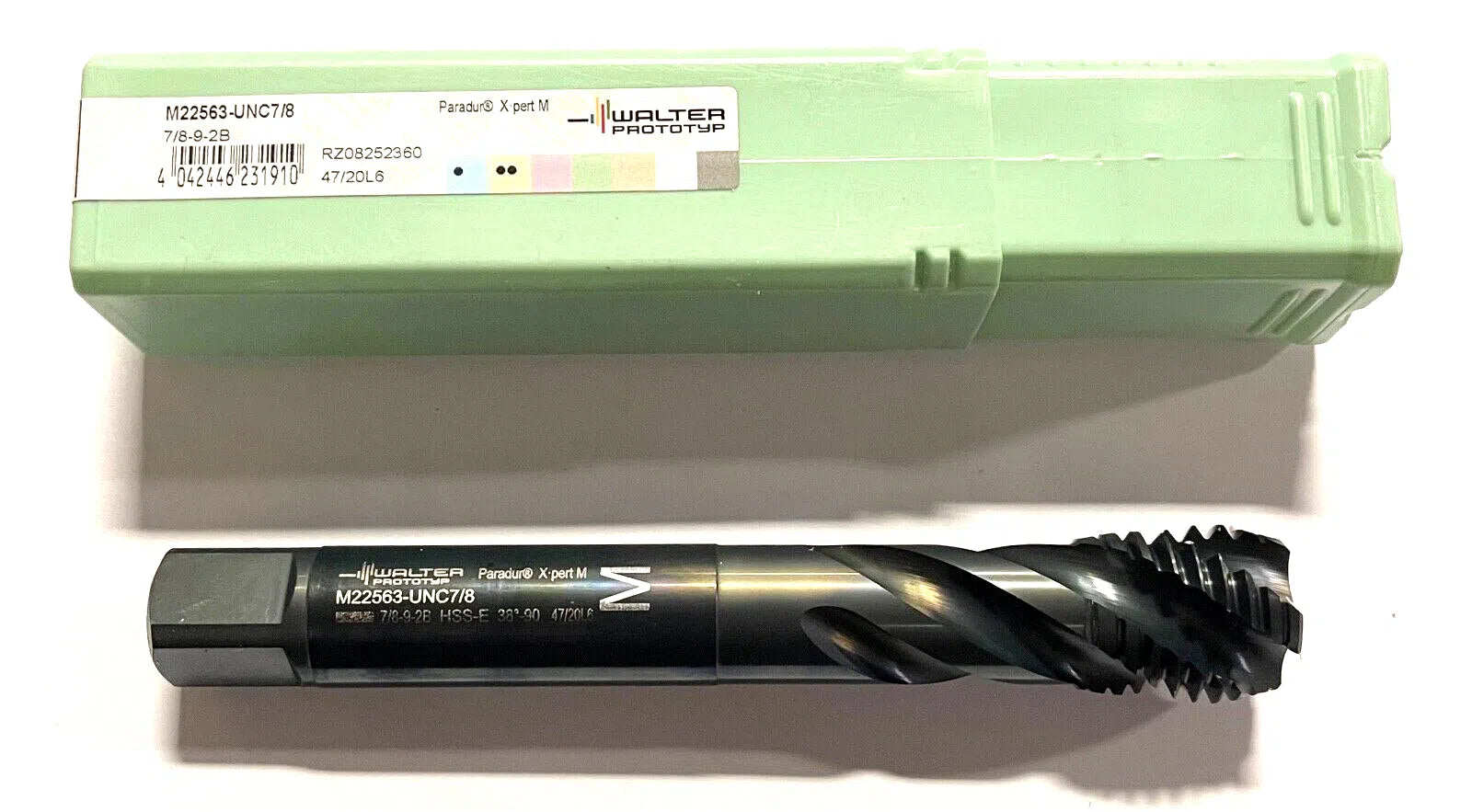

Walter-Prototyp 7/8-9UNC HSS-E Spiral Flute Modified Bottoming Tap 4 Flute
Walter-Prototyp 7/8-9UNC HSS-E Spiral Flute Modified Bottoming Tap 4 Flute
Regular price
$28.02 USD
Regular price
$0.00 USD
Sale price
$28.02 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
WALTER-PROTOTYP
HSS-E SPIRAL FLUTE MODIFIED BOTTOMING TAP
| Thread Diameter Size (TDZ) | 7/8″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 9 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | NC | Standard | DIN 2184-1 |
| Overall Length (OAL) | 5-33/64″ | Flute Length | 2-13/32″ |
| Thread Cutting Part Length (THL) | 63/64″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Fractional |
