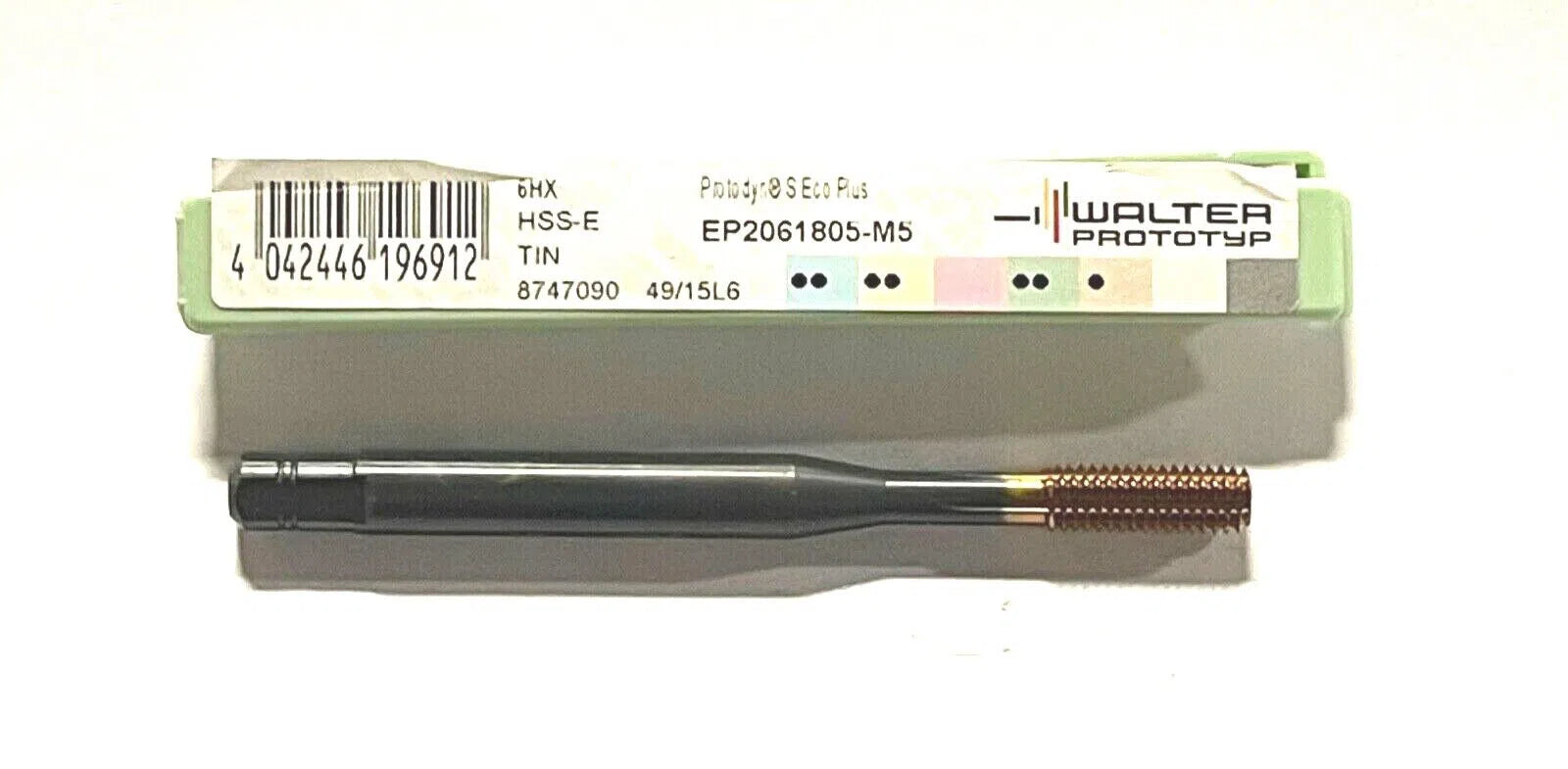

Walter-Prototyp M5 x 0.8mm HSS-E Thread Former Tap Tin Coating 6HX 5 Flute
Walter-Prototyp M5 x 0.8mm HSS-E Thread Former Tap Tin Coating 6HX 5 Flute
Regular price
$10.19 USD
Regular price
$0.00 USD
Sale price
$10.19 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
WALTER
HSS-E THREAD FORMER TAP
| Thread Diameter Size (TDZ) | M5 | Coating | TiN |
| Thread Pitch (TP) | 0.8 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 72.35 mm | Helix Angle | CW|40 Degrees |
| Thread Cutting Part Length (THL) | 13 mm | Flute Length | 21 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSS |
| Tap Standard | DIN 2174 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric |
