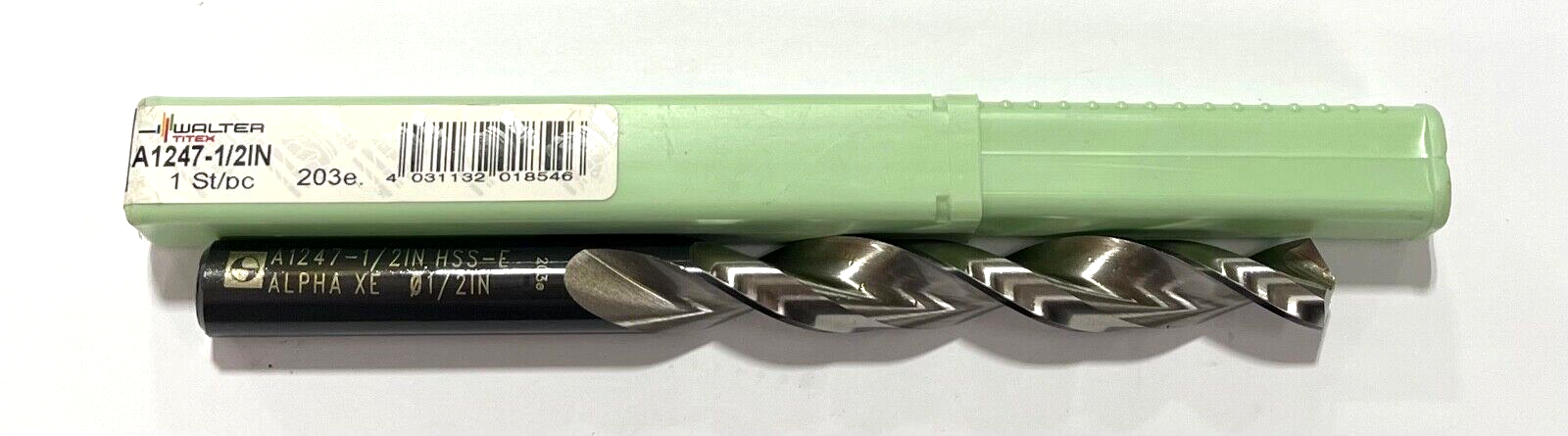

Walter-Titex 1/2" Cobalt Drill Bit Jobber Length A1247-1/2

PRODUCT DESCRIPTION

WALTER-TITEX

HSS-E JOBBER LENGTH DRILL

Brand

WALTER TITEX

Drill Bit Size

1/2 in

Decimal Equivalent

0.5

Measurement System

Fractional Inch

Material - Machining

High Speed Steel

Finish - Machining

Bright (Uncoated)

Drill Bit Point Angle

130 °

Drill Bit Point Type

Conical Point

Coolant Fed

Non-Coolant Through

Flute Type

Spiral

Number of Flutes

2

Flute Length

101.00 mm

Cutting Direction

Right Hand

Shank Type - Machining

Straight

Shank Length

50.00 mm

Overall Length

151.00 mm

Depth:Dia. Ratio

8xD

Drill Length Class

Jobber Length

Drill Point Length

2.96mm

Standards

DIN 338

Drill Diameter Tolerance

H8

Sheeter Drill

No

Material Grade - Machining

General Purpose

Primary Material Application

Aluminum; Brass; Bronze; Cast Iron; Copper; Nickel; Stainless Steel; Steel; Titanium

Primary Material Application ISO Code

K; M; N; P; S

Secondary Material Application

Composite

Secondary Material Application ISO Code

O

Series

Alpha X-E

Maximum Drilling Depth

101 mm

UNSPSC

27112801

Country of Origin

France (subject to change)
