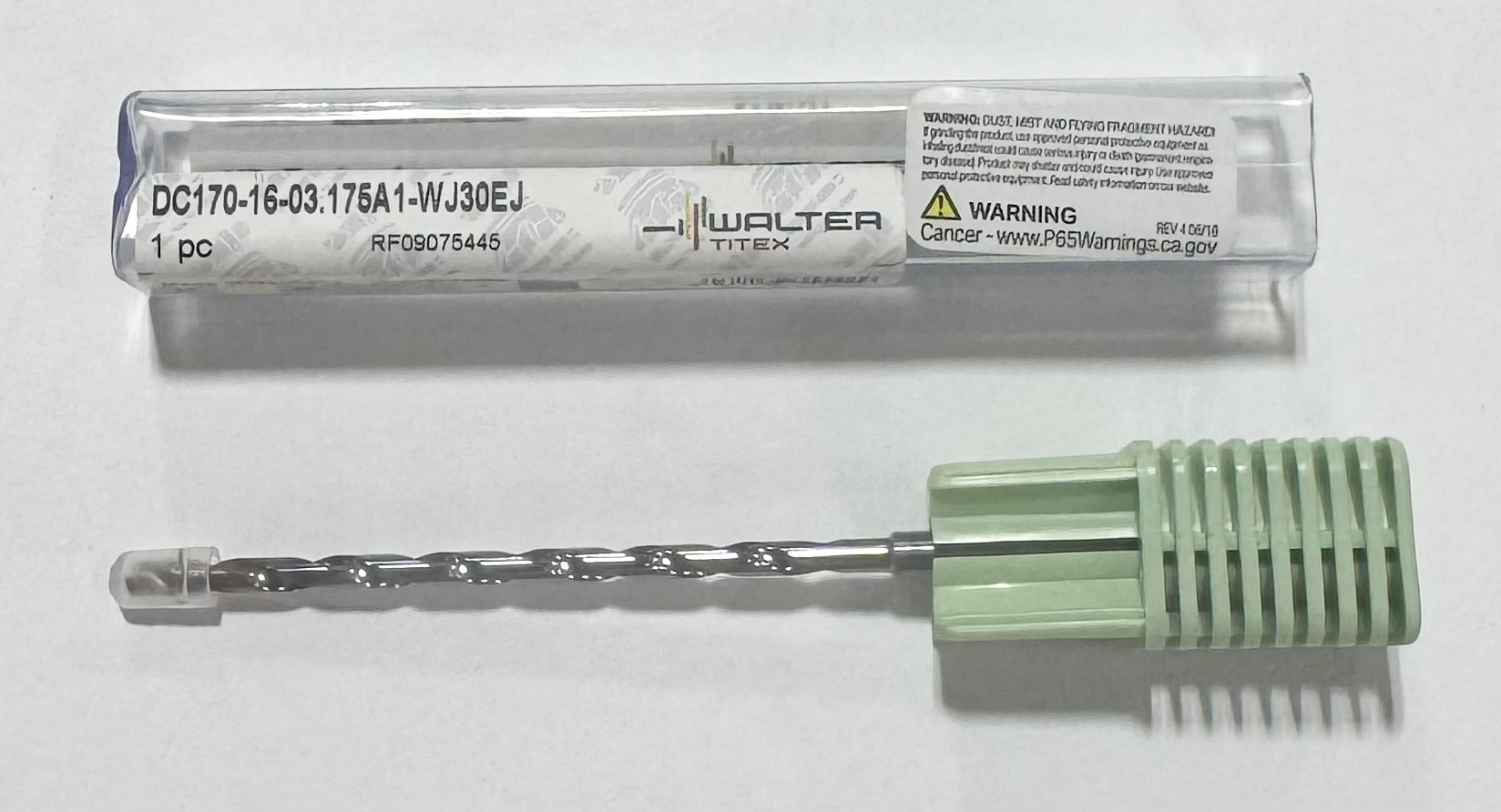

Walter-Titex 1/8" Solid Carbide Drill 16xD Coolant Thru 2FL TiAlN AlCrN
Walter-Titex 1/8" Solid Carbide Drill 16xD Coolant Thru 2FL TiAlN AlCrN
Regular price
$93.99 USD
Regular price
$0.00 USD
Sale price
$93.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
Walter-Titex 1/8" Solid Carbide Drill 16xD Coolant Thru 2FL TiAlN AlCrN
PRODUCT DESCRIPTION
| Description | SC Drill; 1/8" Dia. x 1/8" Shank Dia. x 3-55/64" OAL x 2-19/32" LCF ; 140 Degrees ; 16xD ; Series DC170-WJ30EJ |
|---|---|
| Brand | Walter-Titex |
| Connection Diameter Machine Side Dconms | 1/8" |
| Coolant Supply Property CSP | Coolant Thru |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125" |
| Drill Bit Size Cutting Diameter DC | 1/8" |
| Drill Bit Size Cutting Diameter DC Inch | 1/8" |
| Flute Helix Angle Fha | 30 Degrees |
| Grade | WJ30EJ |
| Length Chip Flute LCF | 2-19/32" |
| Length Group | 16xD |
| Measurement Type | Inch |
| Overall Length Oal | 3-55/64" |
| Point Angle Sig | 140 Degrees |
| Serieslist | DC170-WJ30EJ |
| Shank Standard | DIN 6535 HA |
| Shank Type | Round |
| Shape | Solid Carbide |
| Tool Type | Solid Carbide |
| Usable Length Lu | 2-23/64" |
