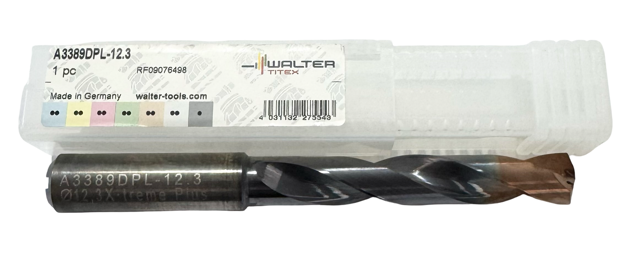

Walter-Titex 12.3mm Solid Carbide Drill 5xD Coolant Thru DPL Coated 140° Point

PRODUCT DESCRIPTION

Description	SC Drill; 12.3 mm Dia. x 14 mm Shank Dia. x 124 mm OAL x 77 mm LCF ; 140 Degrees ; 5xD ; Series A3389DPL
Brand	Walter-Titex
Connection Diameter Machine Side Dconms	14 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Edge Material	Carbide
Decimal Equivalent	0.4843"
Drill Bit Size Cutting Diameter DC	12.3 mm
Drill Bit Size Cutting Diameter DC Metric	12.3 mm
Flute Count Nof	2
Flute Helix Angle Fha	30 Degrees
Length Chip Flute LCF	77 mm
Length Group	5xD
Measurement Type	Metric
Overall Length Oal	124 mm
Point Angle Sig	140 Degrees
Serieslist	A3389DPL
Shank Standard	DIN 6537 L
Shank Type	Round
Tool Type	Solid Carbide Drills
Usable Length Lu	60 mm
