Michigan Wholesale Tool Supply

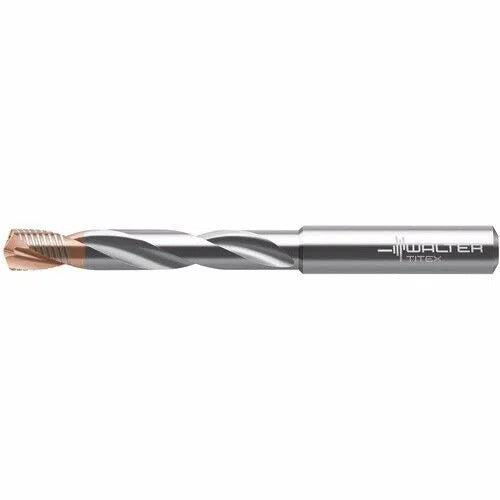

Walter-Titex 14mm Solid Carbide Drill 5xD Coolant Thru Tinal/AlCrN Coated 2FL
Walter-Titex 14mm Solid Carbide Drill 5xD Coolant Thru Tinal/AlCrN Coated 2FL
Regular price
$57.87 USD
Regular price
$0.00 USD
Sale price
$57.87 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
WATER-TITEX
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 14 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14 mm | Tool Type | Solid Carbide Drill |
| Length Group | 5xD | Grade | WJ30EJ |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | DC170-WJ30EJ |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 60 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 77 mm |
| Shank Type | Round | Overall Length (OAL) | 124 mm |
| Shank Standard | | DIN 6537 L | | Flute Count (NOF) | 2 |
