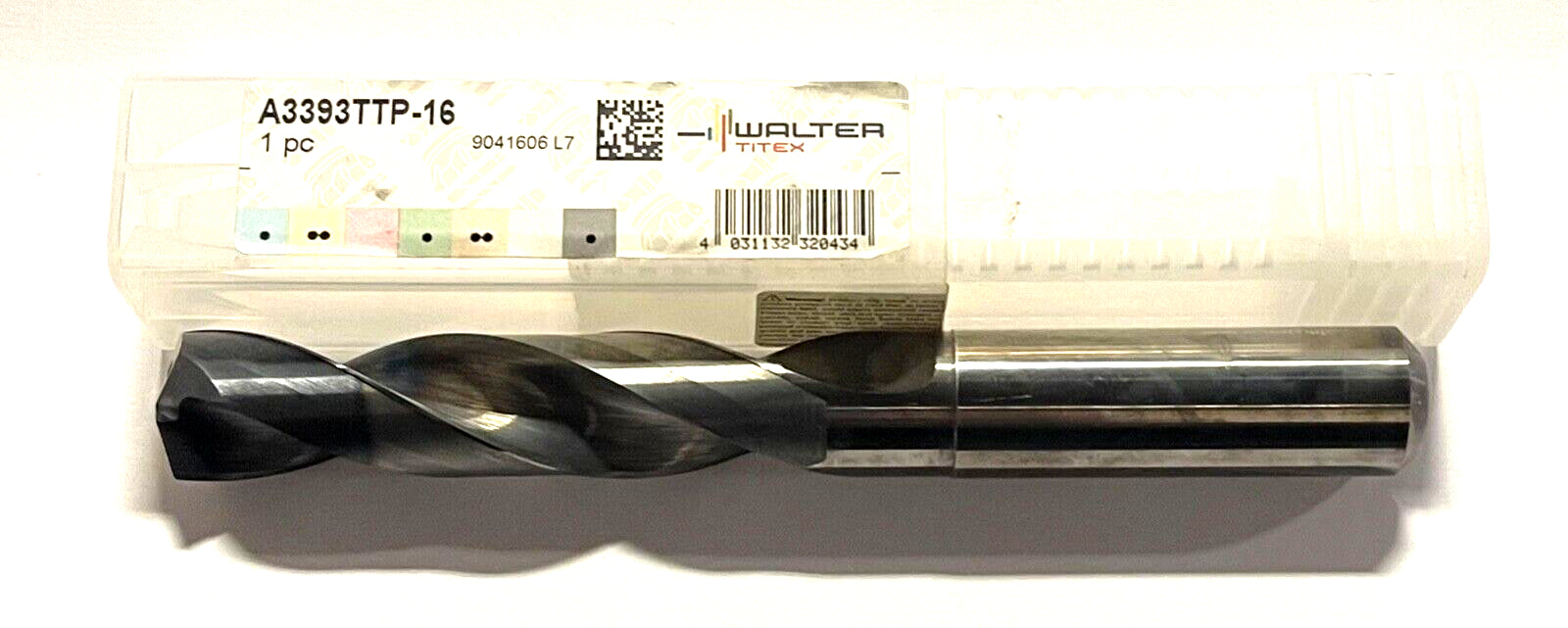

Walter-Titex 16mm Solid Carbide Drill 5xD TiNAl Coated Coolant Thru 140° 2 Flute
Walter-Titex 16mm Solid Carbide Drill 5xD TiNAl Coated Coolant Thru 140° 2 Flute
Regular price
$69.88 USD
Regular price
$0.00 USD
Sale price
$69.88 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
WALTER-TITEX
SOLID CARBIDE DRILL 5XD
| Drill Bit Size / Cutting Diameter (DC) | 16 mm | Shank Standard | DIN 6537 L |
| Decimal Equivalent | 0.6299″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm | Tool Type | Solid Carbide Drill |
| Length Group | 5xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | A3393TTP |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 63 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 83 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 133 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
