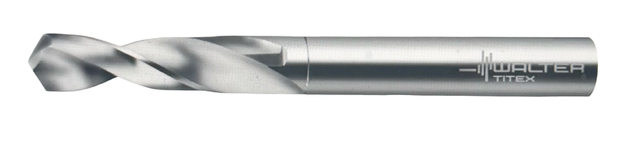

Walter-Titex 1mm Solid Carbide Drill 3xD 118 Degree
Walter-Titex 1mm Solid Carbide Drill 3xD 118 Degree
Regular price
$2.99 USD
Regular price
$0.00 USD
Sale price
$2.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
16 in stock
Couldn't load pickup availability
Walter-Titex 1mm Solid Carbide Drill 3xD 118 Degree
PRODUCT DESCRIPTION
| Description | SC Drill; 1 mm Dia. x 1 mm Shank Dia. x 26 mm OAL x 6 mm LCF ; 118 Degrees ; 3xD ; Series A1163 |
|---|---|
| Brand | Walter-Titex |
| Connection Diameter Machine Side Dconms | 1 mm |
| Coolant Supply Property CSP | External |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0394" |
| Drill Bit Size Cutting Diameter DC | 1 mm |
| Drill Bit Size Cutting Diameter DC Metric | 1 mm |
| Flute Helix Angle Fha | 30 Degrees |
| Length Chip Flute LCF | 6 mm |
| Length Group | 3xD |
| Measurement Type | Metric |
| Overall Length Oal | 26 mm |
| Point Angle Sig | 118 Degrees |
| Serieslist | A1163 |
| Shank Standard | DIN 6539 |
| Shank Type | Round |
| Shape | Solid Carbide |
| Tool Type | Solid Carbide |
| Usable Length Lu | 4 mm |
