Michigan Wholesale Tool Supply

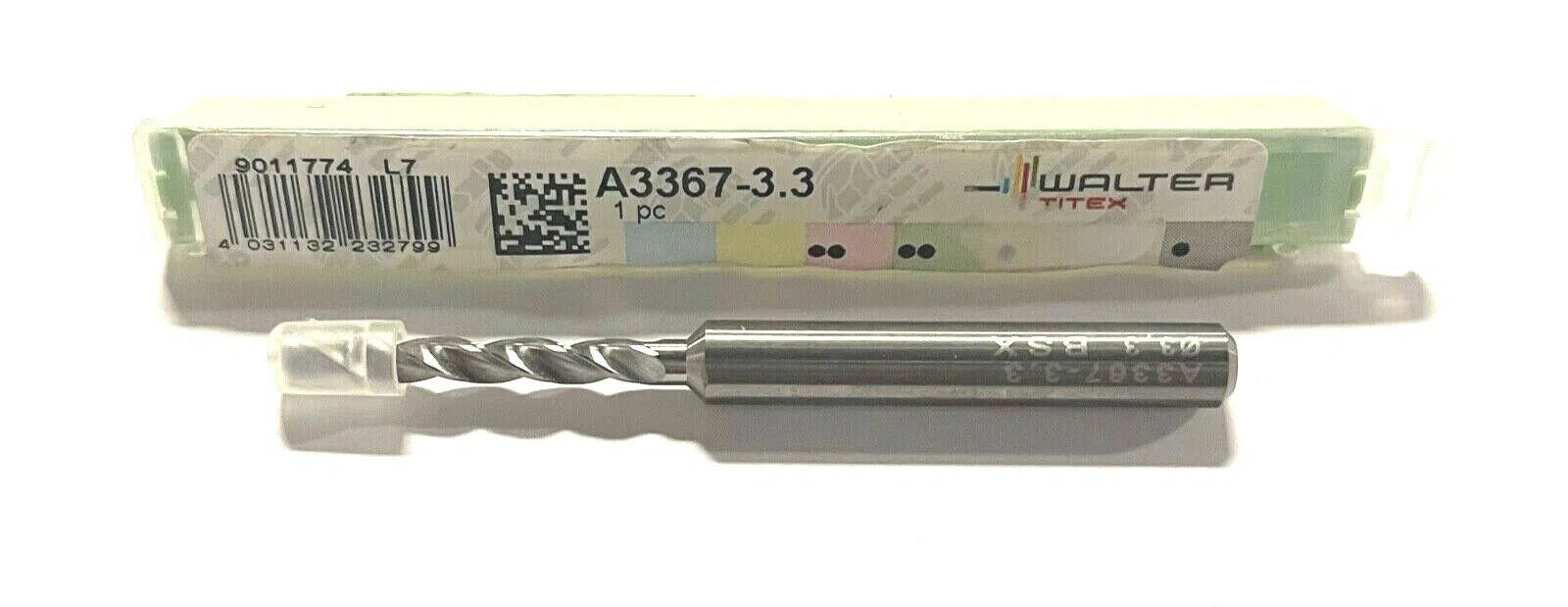

Walter-Titex 3.3mm Solid Carbide Drill 5xD 130° Point 30° Helix 3 Flute
Walter-Titex 3.3mm Solid Carbide Drill 5xD 130° Point 30° Helix 3 Flute
Regular price
$12.12 USD
Regular price
$0.00 USD
Sale price
$12.12 USD
Unit price
/
per
Shipping calculated at checkout.
34 in stock
Couldn't load pickup availability
WALTER-TITEX
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Shank Standard | DIN 6537 L |
| Decimal Equivalent | 0.1299″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | A3367 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 23 mm |
| Point Angle (SIG) | 130 Degrees | Length Chip Flute (LCF) | 28 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 66 mm |
| Shank Type | Round | Flute Count (NOF) | 3 |
