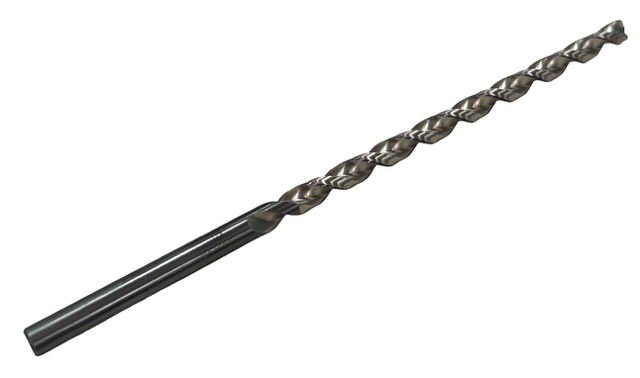

Walter-Titex 3/8" HSS Drill Bit 12xD Parabolic Flute 130° Point Deep-Hole Drill
Walter-Titex 3/8" HSS Drill Bit 12xD Parabolic Flute 130° Point Deep-Hole Drill
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Low stock: 2 left
Couldn't load pickup availability
Walter-Titex 3/8" HSS Drill Bit 12xD Parabolic Flute 130° Point Deep-Hole Drill
PRODUCT DESCRIPTION
Drill Bit Size
3/8 in
Overall Length
7 61/250 in
Flute Length
4 191/250 in
Shank Dia.
9.52 mm
Sizes Included
3/8"
Depth:Dia. Ratio
12xD
Drill Length Class
Extended-Length
Maximum Drilling Depth
4 3/4 in
Drill Point Length
2.22mm
Drill Diameter Tolerance
H8
Shank Length
63 mm
Details
Item
Extra Long Drill Bit
Number of Flutes
2
Material - Machining
High Speed Steel
Finish - Machining
Bright (Uncoated)
Drill Bit Point Angle
130 Degrees
Drill Bit Point Type
Conical Point
Cutting Direction
Right Hand
Flute Type
Parabolic
Coolant Fed
Non-Coolant Through
Decimal Equivalent
0.3750
List Number
A1522
Standards
DIN 340
Series
UFL
Shank Type - Machining
Straight
Secondary Material Application
Composite, Nickel, Stainless Steel, Titanium
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Secondary Material Application ISO Code
M, O, S
Primary Material Application ISO Code
