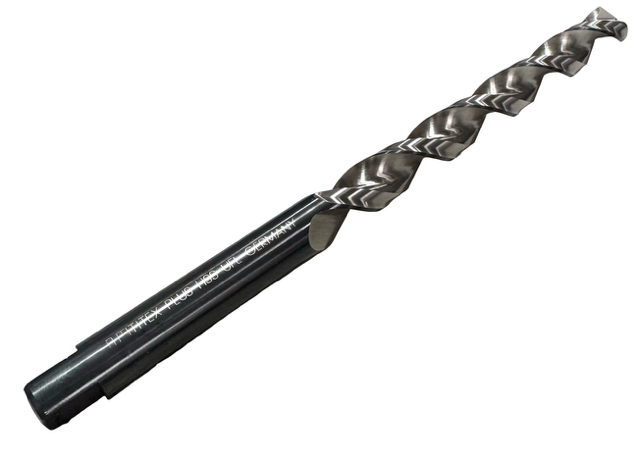

Walter-Titex 39/64" HSS Drill Bit 12xD Tanged Extra Long Deep Hole Drill 130° Point
Walter-Titex 39/64" HSS Drill Bit 12xD Tanged Extra Long Deep Hole Drill 130° Point
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $25.
Low stock: 5 left
Couldn't load pickup availability
Walter-Titex 39/64" HSS Drill Bit 12xD Tanged XL Deep Hole Drill 130° Point
PRODUCT DESCRIPTION
Drill Bit Size
39/64 in
Overall Length
8 937/1000 in
Flute Length
5 433/500 in
Shank Dia.
15.47 mm
Depth:Dia. Ratio
12xD
Sizes Included
39/64"
Drill Point Length
3.61mm
Shank Length
78 mm
Drill Length Class
Extended-Length
Maximum Drilling Depth
5 55/64 in
Drill Diameter Tolerance
H8
Details
Item
Extra Long Drill Bit
Number of Flutes
2
Material - Machining
High Speed Steel
Finish - Machining
Bright (Uncoated)
Drill Bit Point Angle
130 Degrees
Drill Bit Point Type
Conical Point
Cutting Direction
Right Hand
Flute Type
Parabolic
Coolant Fed
Non-Coolant Through
Decimal Equivalent
0.6094
Standards
DIN 340
List Number
A1522
