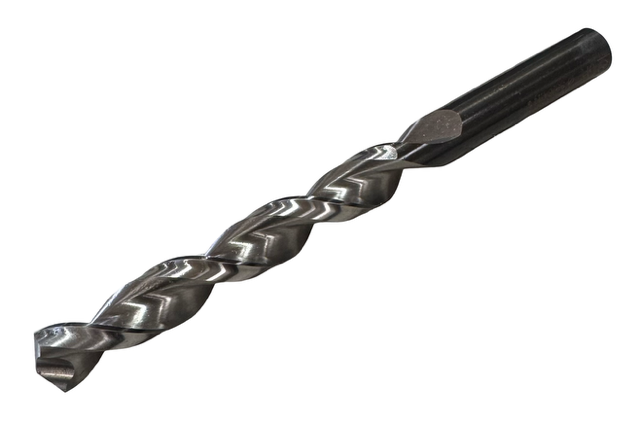

Walter-Titex 39/64" HSSE Drill Bit Deep Hole Jobber Drill 130° Point

PRODUCT DESCRIPTION

Drill Bit Size (Inch)	39/64
Drill Bit Size (Decimal Inch)	0.6094
Drill Bit Material	High Speed Steel
Drill Point Angle (Degrees)	130
Flute Type	Parabolic
Cutting Direction	Right Hand
Point Type	Standard
Primary Workpiece Material	Cast Iron, Non-Ferrous Metal, Steel
Coolant Through	No
Drill Bit Finish/Coating	Oxide
Flute Length (Inch)	4-3/4
Primary Workpiece Material Code	K, N, O, P
Overall Length (Inch)	7
Overall Length (Decimal Inch)	7.0000
Series	A1222
Tool Application	Blind Hole, Stack Drilling
Flute By Diameter Ratio	8xD
Shank Diameter (Inch)	39/64
Maximum Drilling Depth (Decimal Inch)	4.0940
Maximum Drilling Depth (mm)	104.00
Shank Length (mm)	58.00
Shank Length (Decimal Inch)	2.2840
Drill Point Length (mm)	3.61
Drill Point Length (Decimal Inch)	0.1420
Drill Bit Diameter Tolerance	h8
Web Thinning	Web-Thinned
Web Configuration	Tapered
Shank Type	Straight-Cylindrical
Tool Performance	High Performance
Standards	ANSI, ISO
Drill Bit Grade	High Performance
Drill Bit Size Range (Decimal Inch)	0.5000 - 0.6500
Specification Designation	BS, DIN
