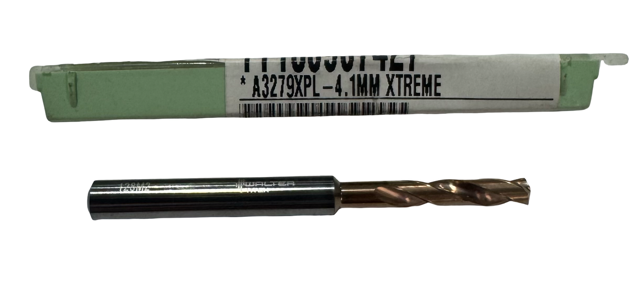

Walter-Titex 4.1mm Solid Carbide Drill 3xD XPL Coated

PRODUCT DESCRIPTION

Drill Bit Size / Cutting Diameter (DC)	4.1 mm	Shank Standard	DIN 6537 K
Decimal Equivalent	0.1614″	Shape	Solid Carbide
Drill Bit Size / Cutting Diameter (DC) - Metric	4.1 mm	Cutting Edge Material	Carbide
Length Group	3xD	Tool Type	Solid Carbide Drills
Connection Diameter Machine Side (DCONMS)	6 mm	Measurement Type	Metric
Coolant Supply Property (CSP)	External	Usable Length (LU)	17 mm
Point Angle (SIG)	140 Degrees	Length Chip Flute (LCF)	24 mm
Flute Helix Angle (FHA)	30 Degrees	Overall Length (OAL)	66 mm
Shank Type	Round
