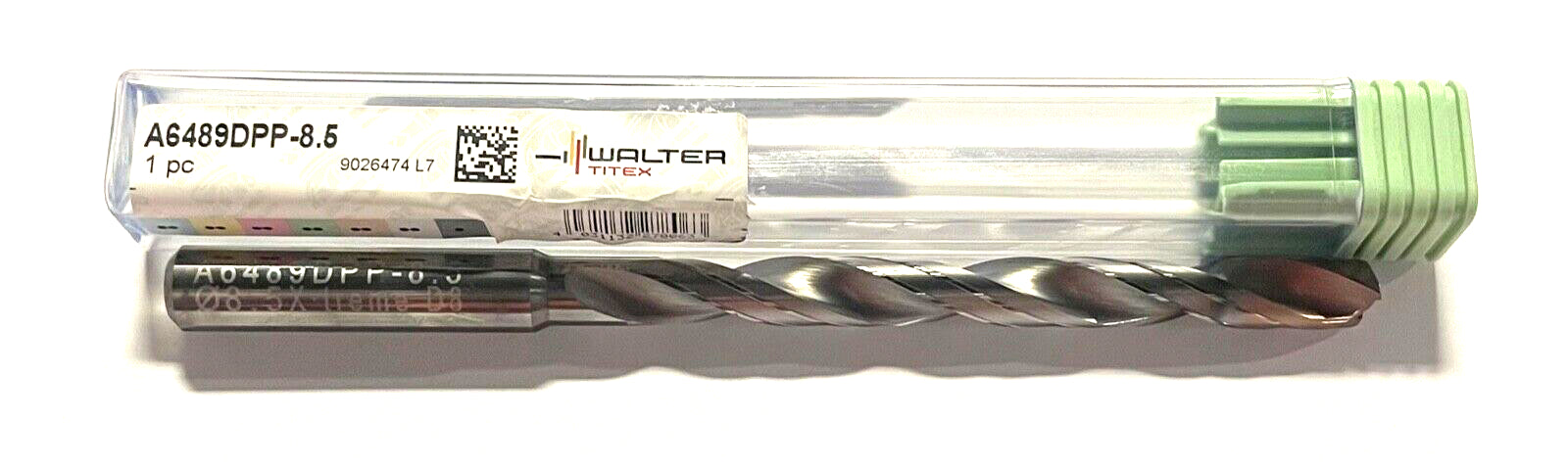

Walter-Titex 8.5mm Solid Carbide Drill 8xD DPP Coating Coolant Thru 140° Drill
Walter-Titex 8.5mm Solid Carbide Drill 8xD DPP Coating Coolant Thru 140° Drill
Regular price
$38.58 USD
Regular price
$0.00 USD
Sale price
$38.58 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Out of stock
Couldn't load pickup availability
WALTER-TITEX
HIGH PERFORMANCE SOLID CARBIDE COOLANT THRU GEOMETRY DRILL
| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm | Shank Standard | DIN 6535 HA |
| Decimal Equivalent | 0.3346″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A6489DPP |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 80 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 95 mm |
| Shank Type | Round | Overall Length (OAL) | 139 mm |
