Michigan Wholesale Tool Supply

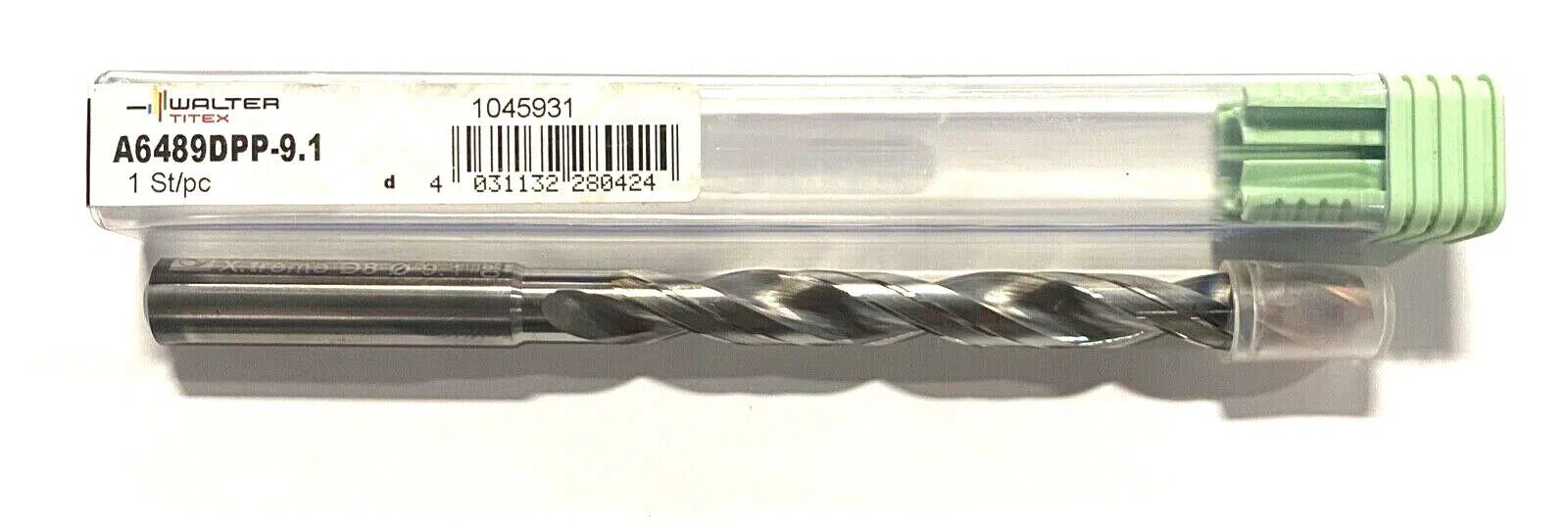

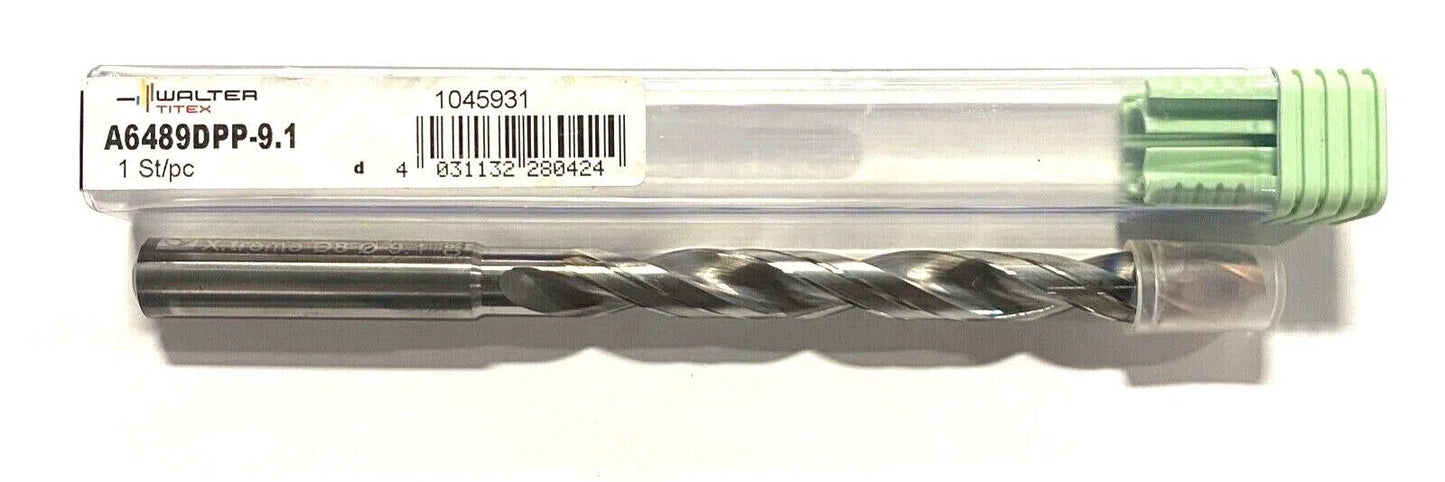

Walter-Titex 9.1mm Solid Carbide Drill Double Coating X-Treme D Point 140° 8xD
Walter-Titex 9.1mm Solid Carbide Drill Double Coating X-Treme D Point 140° 8xD
Regular price
$28.75 USD
Regular price
$0.00 USD
Sale price
$28.75 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
WALTER-TITEX
SOLID CARBIDE DRILL
| Drill Bit Size (mm) | 9.10 |
| Drill Bit Size (Decimal Inch) | 0.3583 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Double Coating |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Overall Length (mm) | 139.00 |
| Overall Length (Decimal Inch) | 5.4724 |
| Flute Length x Diameter Ratio | 8xD |
| Point Type | X-treme D |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Maximum Drilling Depth (mm) | 80.00 |
| Maximum Drilling Depth (Decimal Inch) | 3.1496 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535HA |
| Material Grade | K30F |
| Series/List | A6489DPP |
