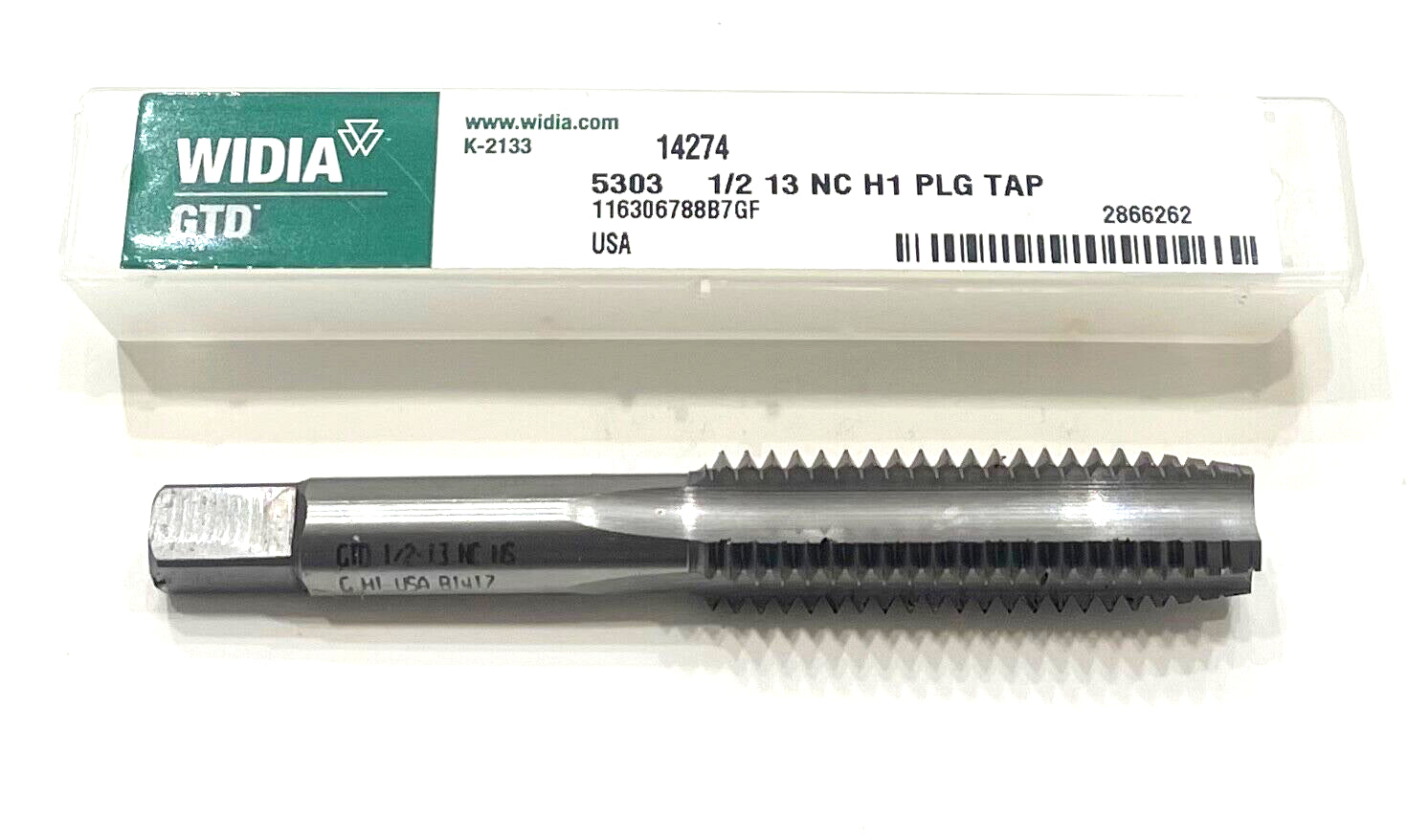

WIDIA 1/2"-13 NC HSS Hand Tap H1 4 Flute Plug Tap USA Made

PRODUCT DESCRIPTION

WIDIA

USA MADE

HIGH SPEED STEEL HAND TAP

Thread Diameter Size (TDZ)	1/2″	Tool Type	Hand Tap
Threads per Inch (TPI)	13	Chamfer	‎3P-5P
Thread Standard	| NC |	Coating	Uncoated
Overall Length (OAL)	‎3-3/8″	Style	Plug
Thread Cutting Part Length (THL)	‎1-21/32″	Shank Type	Round w/ Drive Square
Connection Diameter Machine Side (DCONMS)	0.367″	Coolant Supply Property (CSP)	External
Flute Count (NOF)	4	Square Size	0.275″
Applicable Material	| Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |	Measurement Type	Fractional
Cutting Edge Material	HSS	Thread Size	‎1/2″ - 13
Thread Tolerance Class (TCTR)	| H1 |
