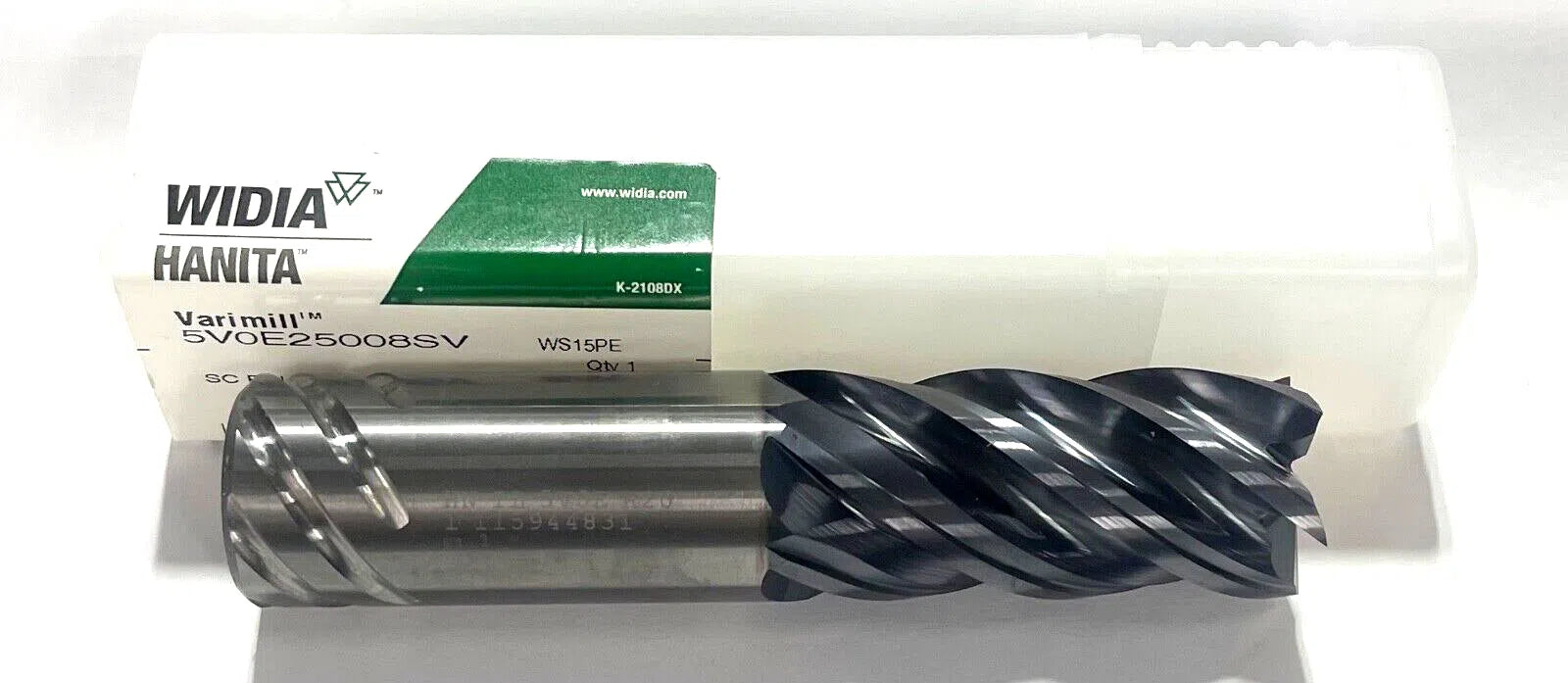

WIDIA 1" Carbide End Mill 5FL AlTiN Coating VariMill Safe-Lock Shank 5594896
WIDIA 1" Carbide End Mill 5FL AlTiN Coating VariMill Safe-Lock Shank 5594896
Regular price
$75.71 USD
Regular price
$0.00 USD
Sale price
$75.71 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
WIDIA HANITA
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | WS15PE |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 5V0E |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 1-3/4″ | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
