Michigan Wholesale Tool Supply

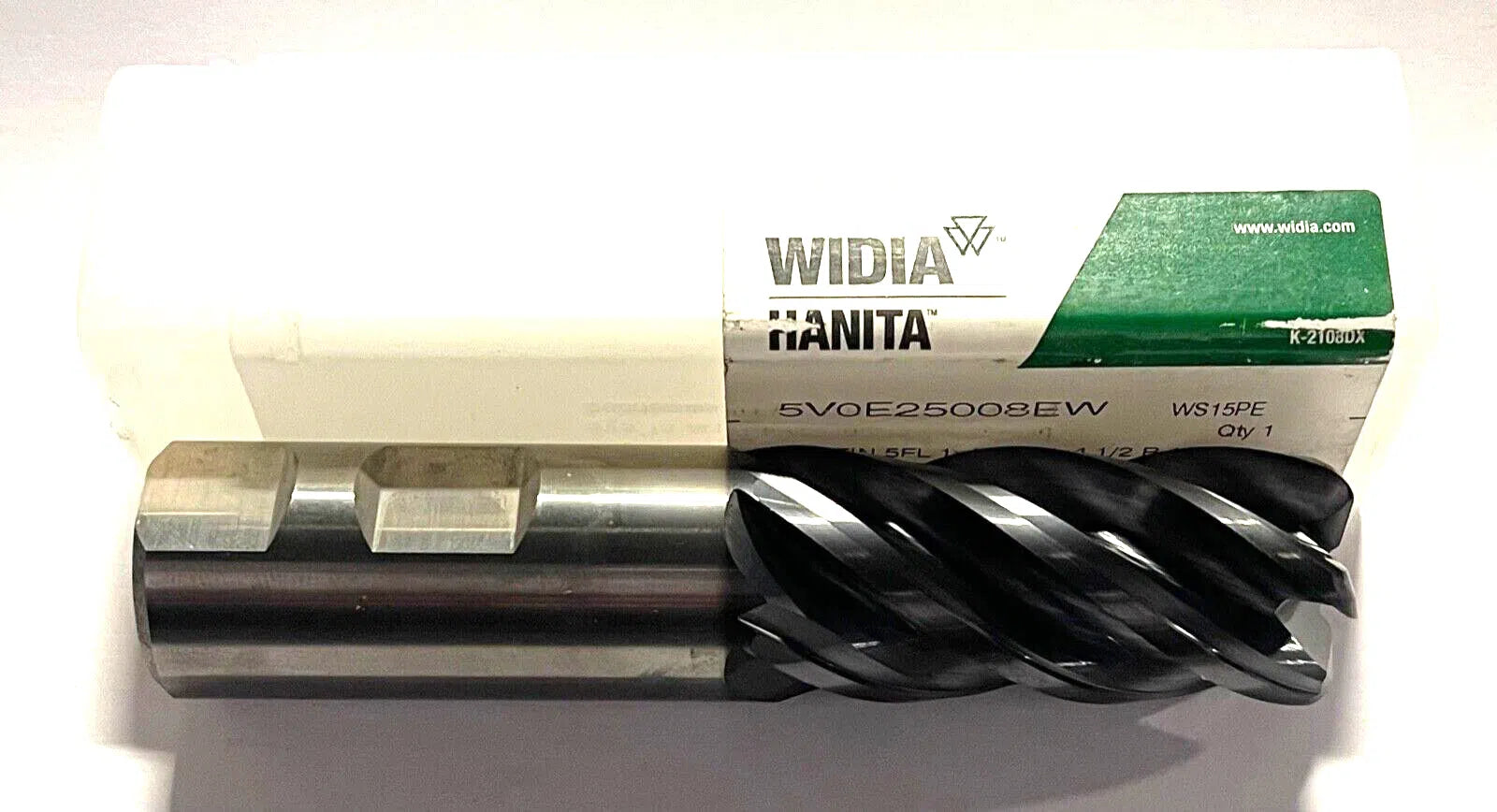

WIDIA 1" Carbide End Mill AlTiN Coating 0.12" Radius Variable Helix 5 Flute
WIDIA 1" Carbide End Mill AlTiN Coating 0.12" Radius Variable Helix 5 Flute
Regular price
$65.88 USD
Regular price
$0.00 USD
Sale price
$65.88 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 7 left
Couldn't load pickup availability
WIDIA
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Chamfer Width (CHW) | 0.12″ |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Grade | WS15PE |
| Overall Length (OAL) | 4-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Weldon | Cylindrical | Series/List # | 5V0E |
| End Shape | Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-3/4″ | Single / Double End | Single End |
| Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Center Cutting | Yes |
