Michigan Wholesale Tool Supply

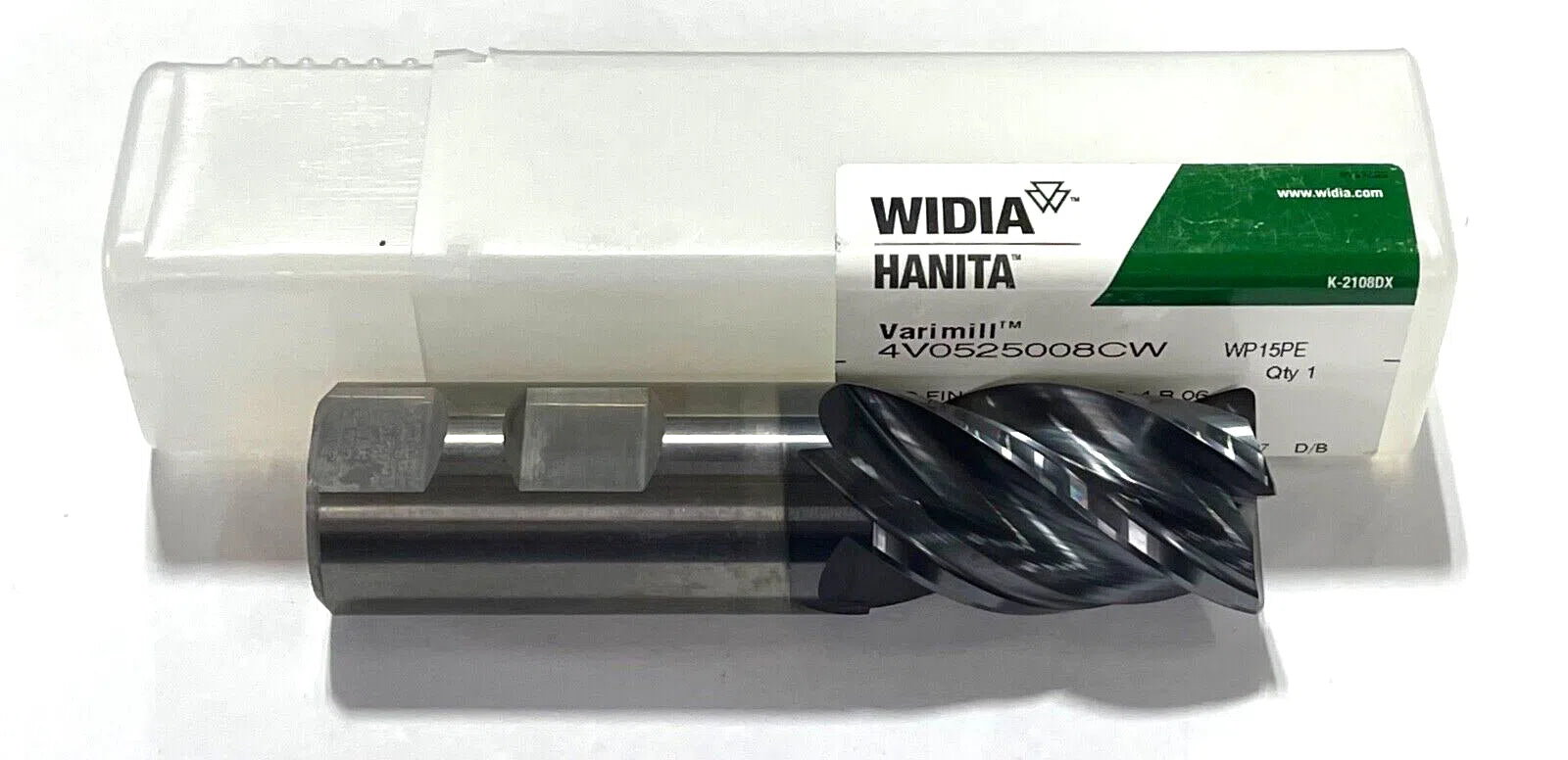

WIDIA 1" Solid Carbide End Mill AlTiN Coating .060" Corner Radius
WIDIA 1" Solid Carbide End Mill AlTiN Coating .060" Corner Radius
Regular price
$61.88 USD
Regular price
$0.00 USD
Sale price
$61.88 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
WIDIA
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1″ | Corner Chamfer Width (CHW) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | WP15PE |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 4V05 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Radius | Single / Double End | Single End |
| Usable Length (LU) | 1-1/2″ | Center Cutting | Yes |
| Corner Radius (RE) | 0.06″ |
