Michigan Wholesale Tool Supply

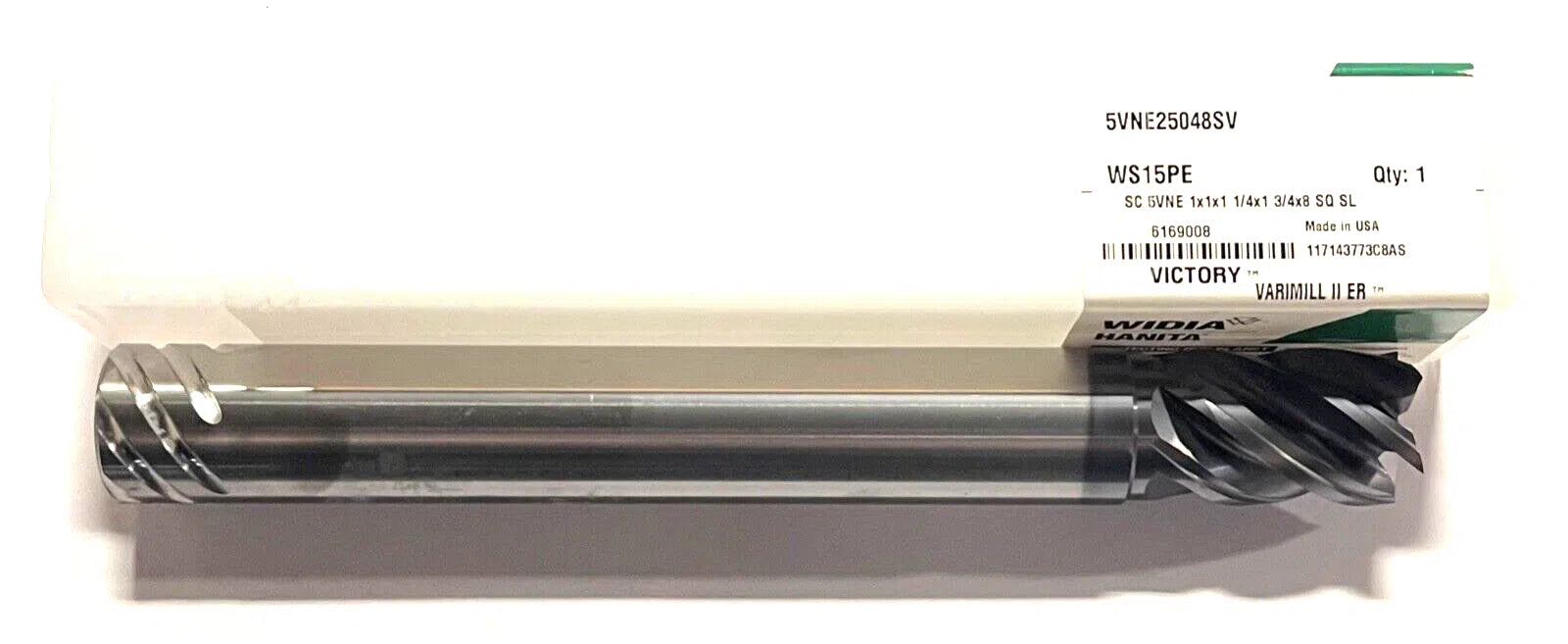

WIDIA 1" x 1" x 1-3/4" x 8" High Performance Carbide End Mill 5 Flute AlTiN USA
WIDIA 1" x 1" x 1-3/4" x 8" High Performance Carbide End Mill 5 Flute AlTiN USA
Regular price
$105.56 USD
Regular price
$0.00 USD
Sale price
$105.56 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
WIDIA HANITA
USA MADE
HIGH PERFORMANCE SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1″ | Neck Diameter (DN) | 0.94″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Head Length (LH) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 8″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 5VNE |
| Shank Type | Cylindrical | Shank Length (LS) | 6.22″ |
| End Shape | Square | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-3/4″ | Single / Double End | Single End |
| Applicable Material | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Center Cutting | Yes |
| Grade | WS15PE |
