Michigan Wholesale Tool Supply

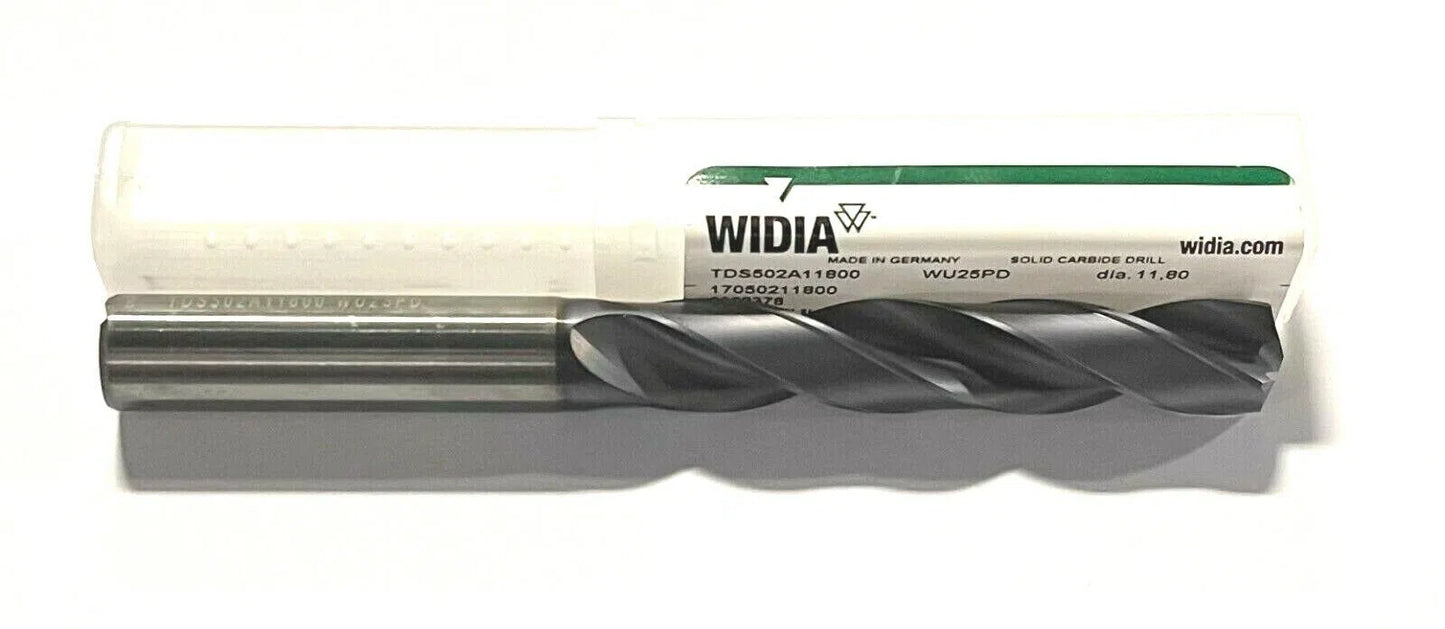

WIDIA 11.80mm Solid Carbide Drill Coolant Thru TiAlN Coated 140° Point Angle
WIDIA 11.80mm Solid Carbide Drill Coolant Thru TiAlN Coated 140° Point Angle
Regular price
$18.38 USD
Regular price
$0.00 USD
Sale price
$18.38 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
WIDIA
SOLID CARBIDE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 11.8 mm | Shape | Center Cut |
| Decimal Equivalent | 0.4646″ | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Center Cut |
| Coating | TiAlN | Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 56 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 71 mm |
| Flute Helix Angle (FHA) | CW | Overall Length (OAL) | 118 mm |
| Shank Type | Round |
