Michigan Wholesale Tool Supply

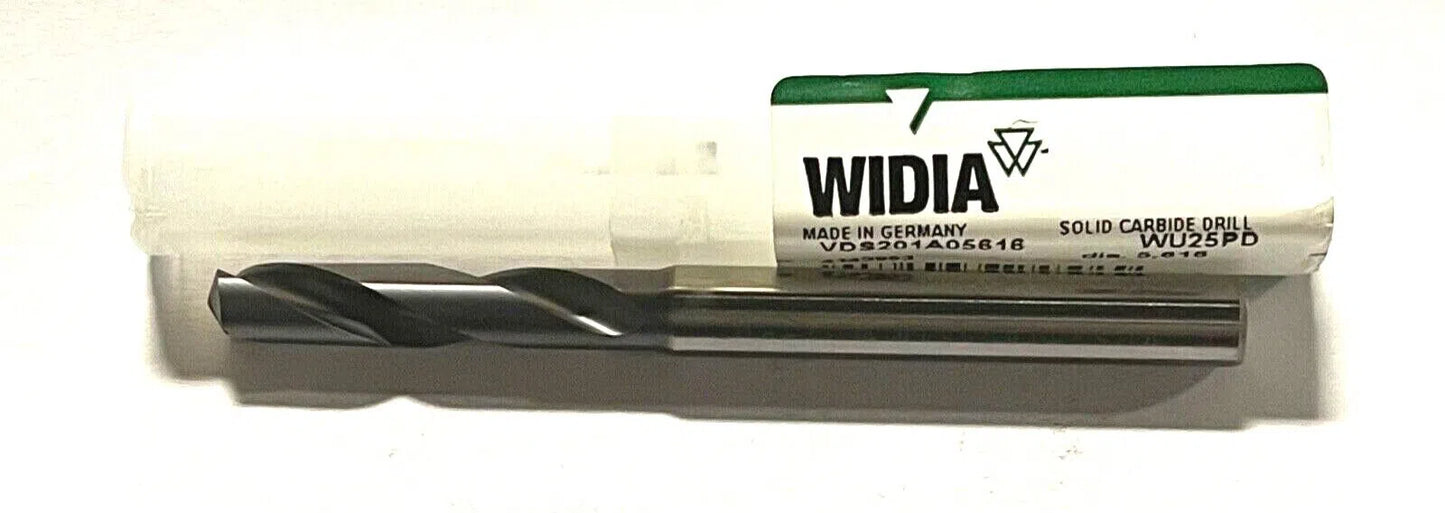

WIDIA #2 Solid Carbide Drill 3xD TiAlN Coating 140° Grade WU25PD
WIDIA #2 Solid Carbide Drill 3xD TiAlN Coating 140° Grade WU25PD
Regular price
$7.35 USD
Regular price
$0.00 USD
Sale price
$7.35 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 8 left
Couldn't load pickup availability
WIDIA
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | #2 | Shank Type | Round |
| Decimal Equivalent | 0.221″ | Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #2 | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Center Cut |
| Coating | TiAlN | Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Measurement Type | Wire Gauge |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 0.79″ |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 1.1″ |
| Flute Helix Angle (FHA) | 28.4 Degrees | Overall Length (OAL) | 2.6″ |
