Michigan Wholesale Tool Supply

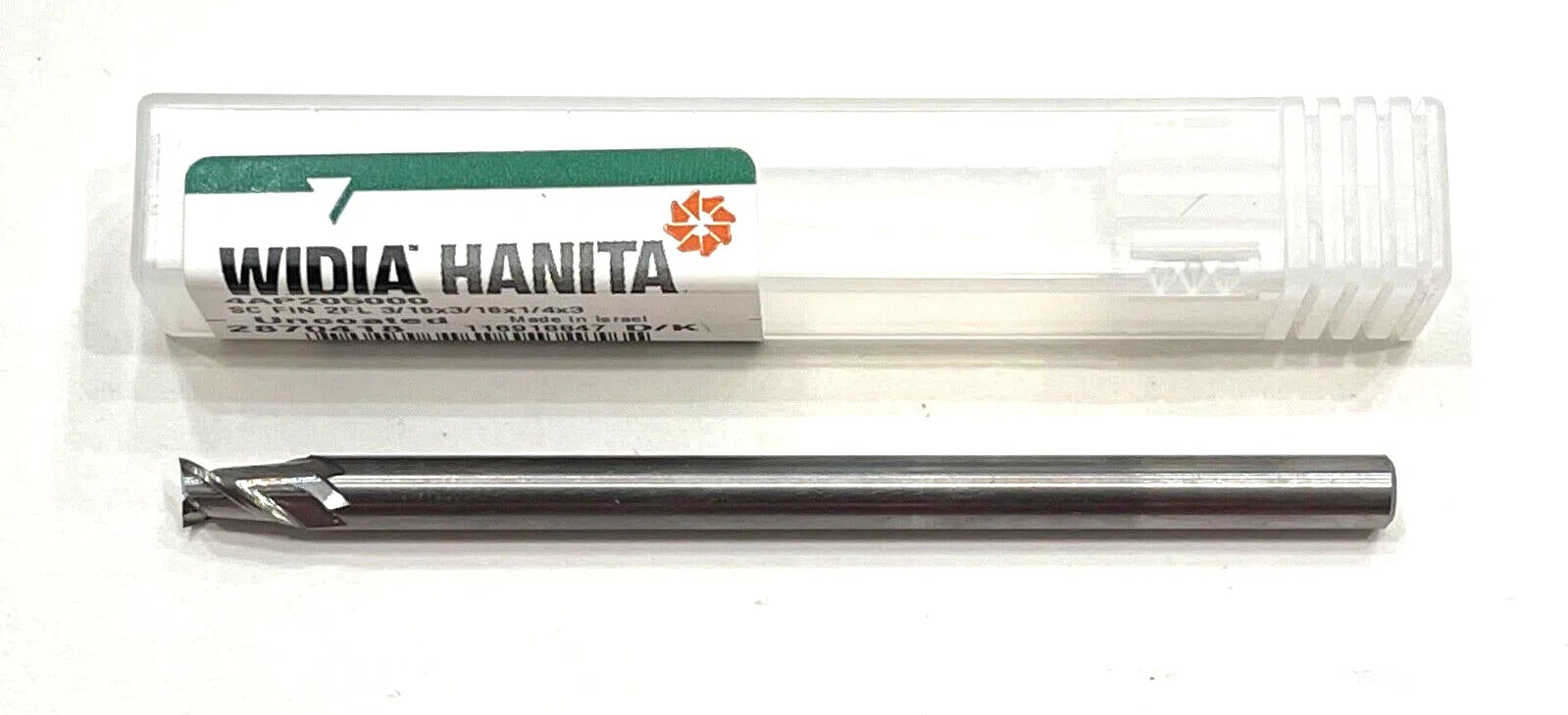

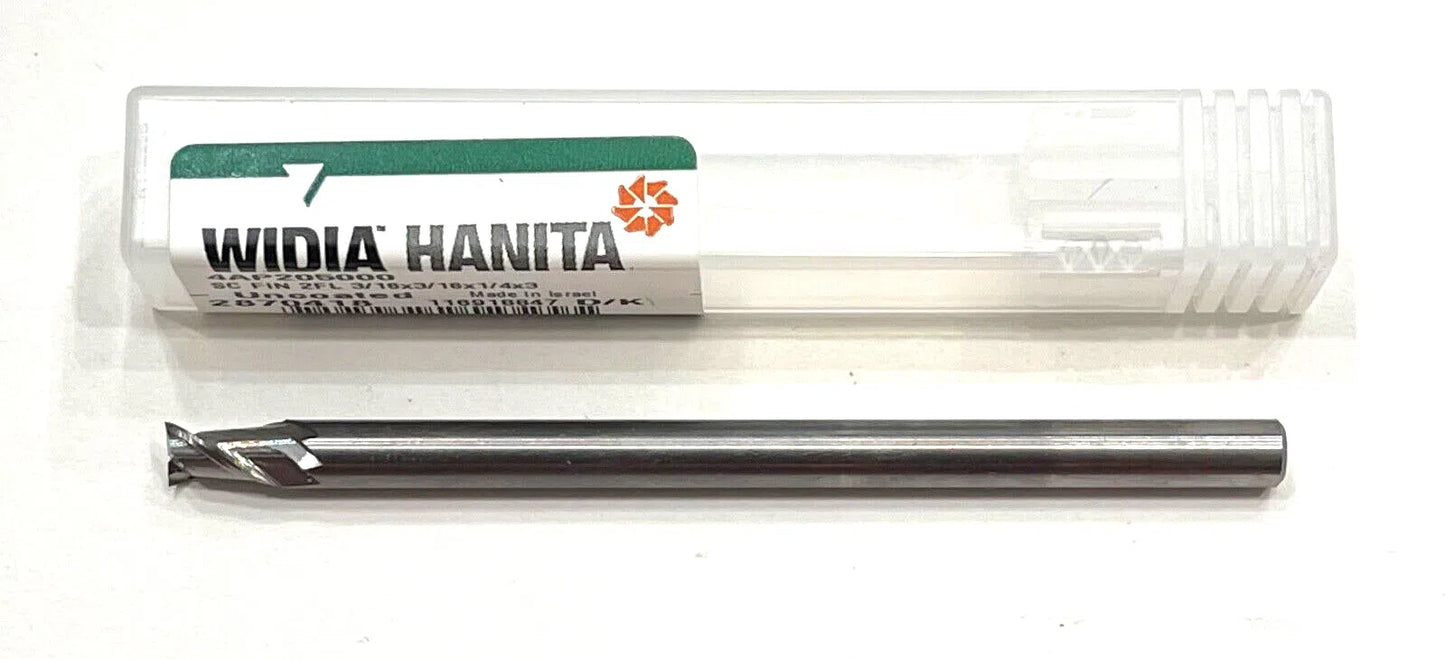

WIDIA 3/16" x 3/16" x 1/4" x 3" Carbide End Mill 2 Flute
WIDIA 3/16" x 3/16" x 1/4" x 3" Carbide End Mill 2 Flute
Regular price
$10.19 USD
Regular price
$0.00 USD
Sale price
$10.19 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
WIDIA
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 3/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1/4″ | Usable Length (LU) | 1/4″ |
| Overall Length (OAL) | 3″ | Applicable Material | Aluminum / Non-Ferrous Materials |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 37 Degrees|CW | Decimal Equivalent | 0.1875″ |
