Michigan Wholesale Tool Supply

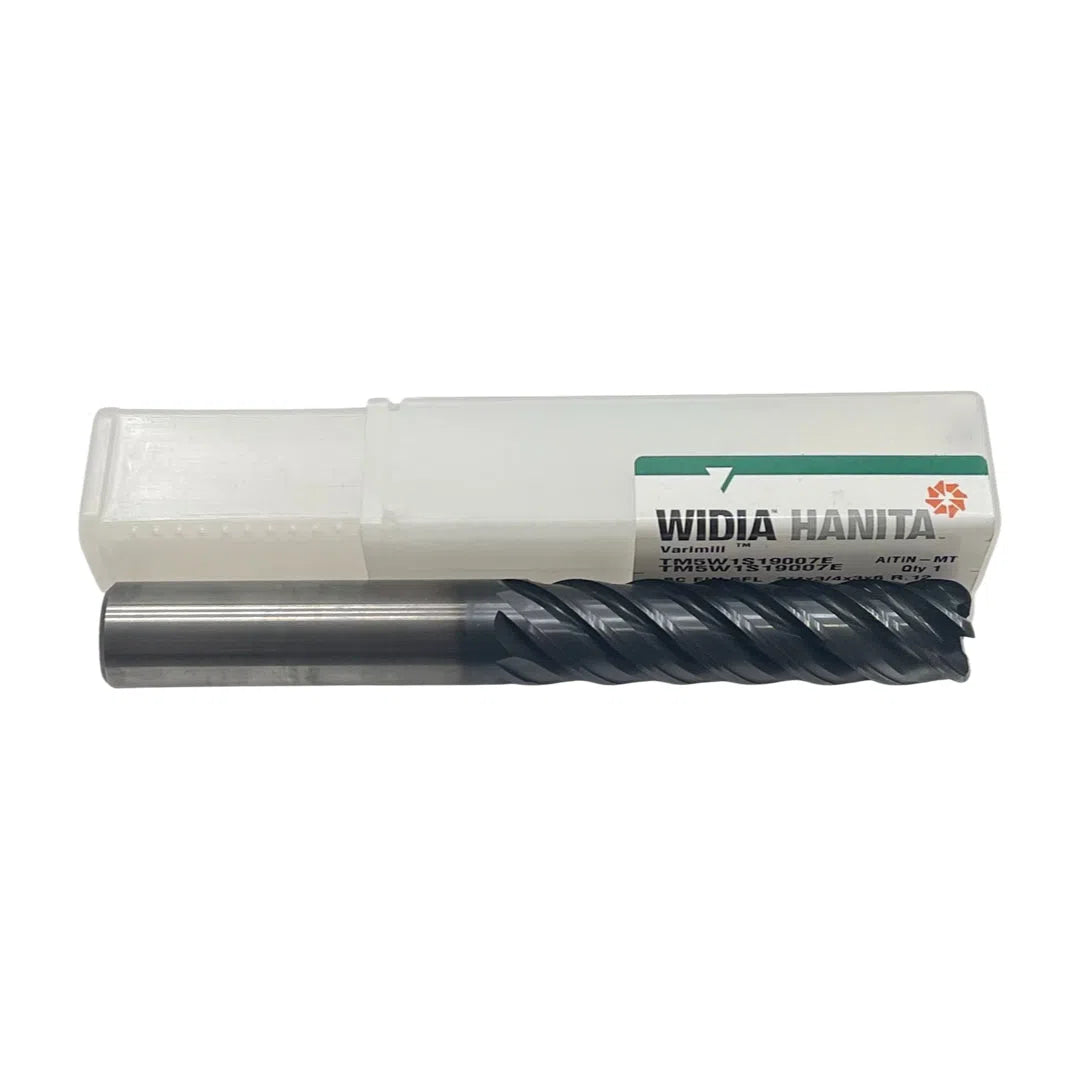

WIDIA 3/4" Carbide End Mill 4xD Long Length VariMill 5 Flute AlTiN .12" Radius
WIDIA 3/4" Carbide End Mill 4xD Long Length VariMill 5 Flute AlTiN .12" Radius
Regular price
$54.60 USD
Regular price
$0.00 USD
Sale price
$54.60 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
WIDIA
HIGH PERFORMANCE SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 3/4″ | Corner Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Non-Center Cutting|Single-End |
| Depth of Cut Maximum (APMX) | 3″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 6″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 43 Degrees | Series/List # | 5W1S |
| Shank Type | Round | Shank Length (LS) | 2-5/8″ |
| End Shape | Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3″ | Single / Double End | Single End |
| Corner Radius (RE) | 0.12″ |
