Low stock: 3 left

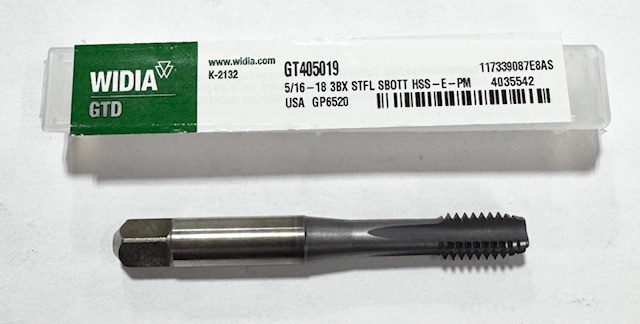

Widia 5/16"-18 Cobalt-PM Straight Flute Semi-Bottoming Tap 3BX 4 Flute

PRODUCT DESCRIPTION

Description	Straight Flute Tap; 5/16" - 18 ; 2.72" OAL ; 4 FL ; HSSCo-PM ; 3BX
Brand	Widia
Chamfer	2P-3P
Connection Diameter Machine Side Dconms	0.318"
Coolant Supply Property CSP	External
Cutting Direction Hand	Neutral
Cutting Edge Material	HSSCoPM
Flute Count Nof	4
Flute Helix Angle Fha	0 Degrees
Flute Type	Straight
Measurement Type	Fractional
Overall Length Oal	2.72"
Shank Type	Round w/ Drive Square
Standard	ANSI
Thread Cutting Part Length THL	0.49"
Thread Diameter Size TDZ	5/16"
Thread Size	5/16" - 18
Thread Standard	NC
Thread Tolerance Class TCTR	3BX
Threads Per Inch Tpi	18
