Low stock: 4 left

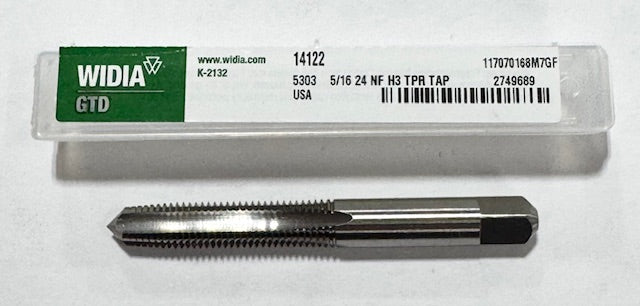

Widia 5/16"-24NF HSS Straight Flute Tap H3 4 Flute Taper Tap USA

PRODUCT DESCRIPTION

Description	Straight Flute Tap; 5/16" - 24 ; 2-23/32" OAL ; 4 FL ; HSS ; Uncoated ; H3
Brand	Widia
Chamfer	7P-10P
Coating	Uncoated
Connection Diameter Machine Side Dconms	0.318"
Coolant Supply Property CSP	External
Cutting Edge Material	HSS
Flute Count Nof	4
Overall Length Oal	2-23/32"
Thread Cutting Part Length THL	1.12"
Thread Diameter Size TDZ	5/16"
Thread Size	5/16" - 24
Thread Standard	NF
Thread Tolerance Class TCTR	H3
Threads Per Inch Tpi	24
