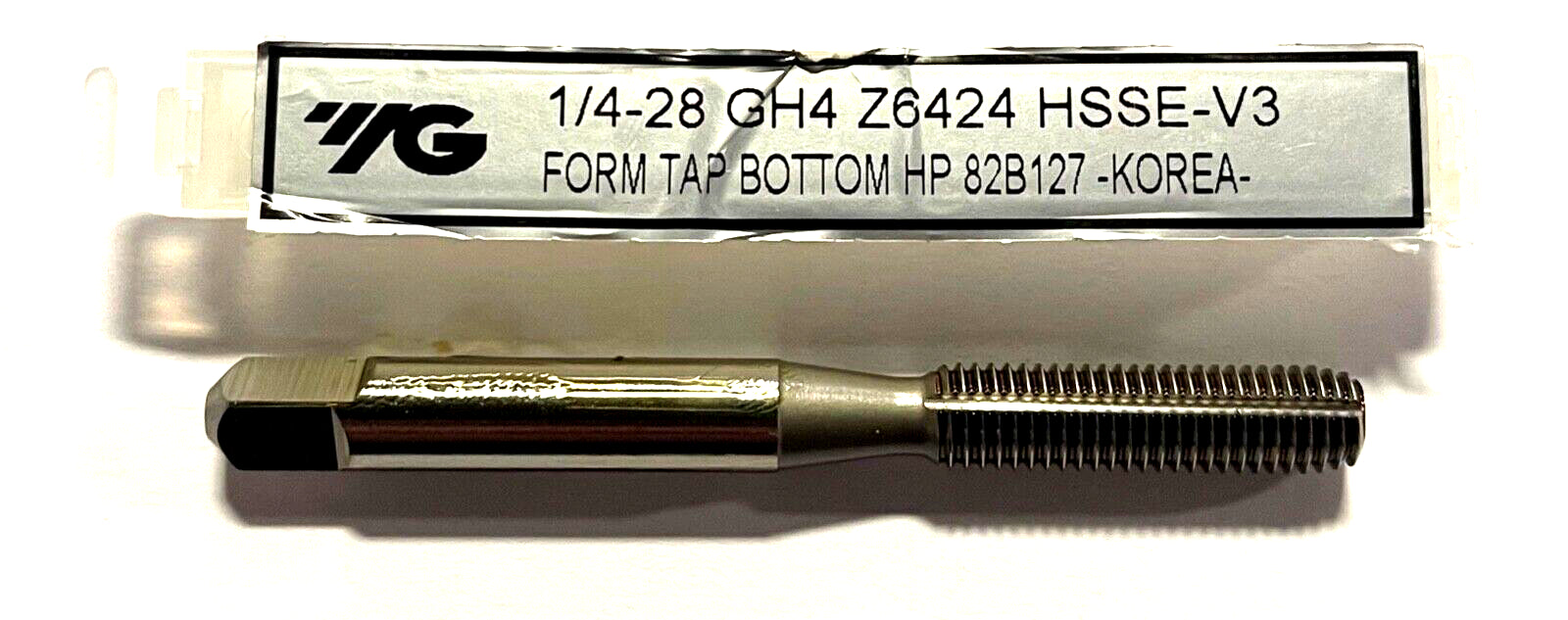

YG 1/4-28 Tap HSSE-V3 Thread Forming Bottoming Tap GH4 High Performance
YG 1/4-28 Tap HSSE-V3 Thread Forming Bottoming Tap GH4 High Performance
Regular price
$4.28 USD
Regular price
$0.00 USD
Sale price
$4.28 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 5 left
Couldn't load pickup availability
YG-1
HSSE-V3 THREAD FORMING BOTTOMING TAP
| Tool Type | Forming Tap | Chamfer | 1.5P-2P |
| Thread Diameter Size (TDZ) | 1/4″ | Length Group | 3D |
| Overall Length (OAL) | 2.5″ | Square Size | 0.191″ |
| Thread Cutting Part Length (THL) | 0.86″ | Measurement Type | Fractional |
| Usable Length (LU) | 1.86″ | End Shape | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Edge Material | HSSE-V3 |
| Thread Tolerance Class (TCTR) | H4 | Series/List # | Z6 |
| Tapping Prehole Diameter (Pre-hole) | 0.234″ | Shank Type | Square |
| Thread Standard | NF | Lobe Count | 4 |
| Coating | Bright | Thread Size | 1/4″ - 28 |
| Threads per Inch (TPI) | 28 |
