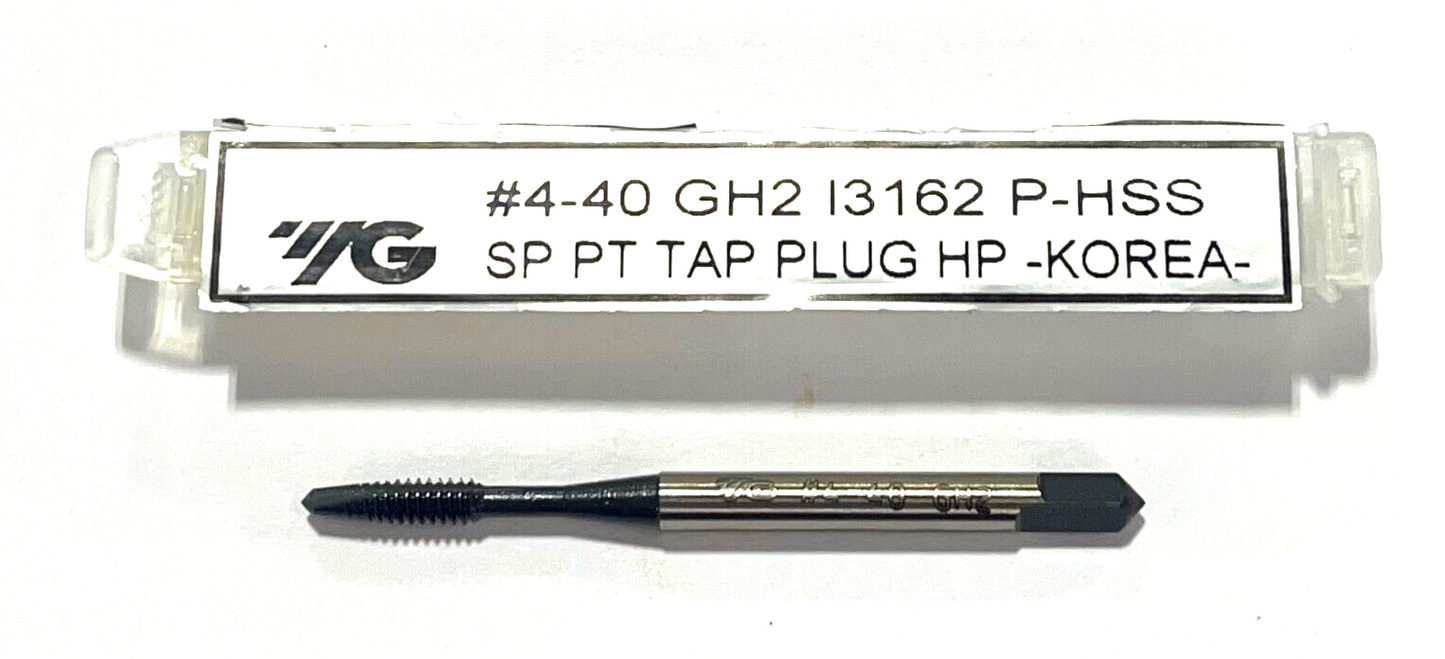

YG-1 4-40 HSSPM Spiral Point Plug Tap 2FL GH2 High Performance Tap
YG-1 4-40 HSSPM Spiral Point Plug Tap 2FL GH2 High Performance Tap
Regular price
$5.46 USD
Regular price
$0.00 USD
Sale price
$5.46 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
YG-1
HSSPM SPIRAL POINT TAP
| Thread Standard | | UNC | | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Size | #4 - 40 | Thread Cutting Part Length (THL) | 0.335″ |
| Thread Diameter Size (TDZ) | #4 | Flute Helix Angle (FHA) | 0 Degrees |
| Threads per Inch (TPI) | 40 | Tapping Prehole Diameter (Pre-hole) | 0.089″ |
| Thread Tolerance Class (TCTR) | | H2 | | End Shape | Plug |
| Usable Length (LU) | 0.563″ | Shank Type | Square |
| Overall Length (OAL) | 1.88″ | Coolant Supply Property (CSP) | No |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | | Black Oxide | | Square Size | 0.11″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Cutting Edge Material | HSSPM | Series/List # | I3 |
| Tool Type | Spiral Point Tap |
