Michigan Wholesale Tool Supply

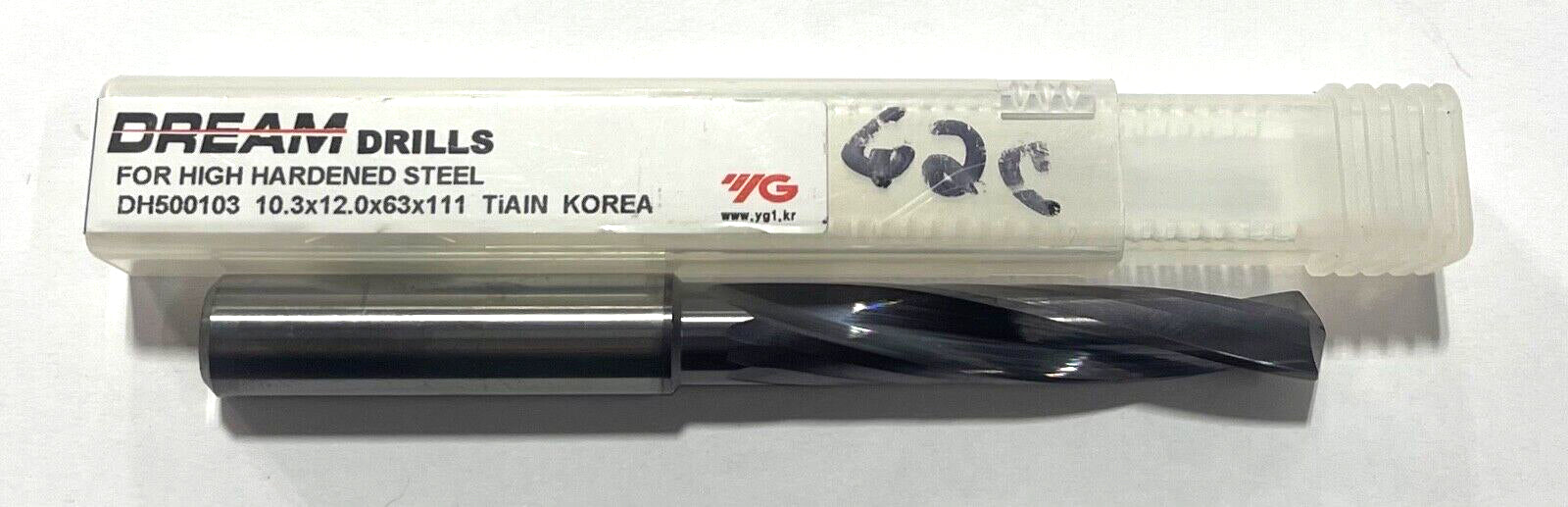

YG 10.3mm Solid Carbide Drill 6xD for Hardened Steel 2 Flute TiAlN Coating
YG 10.3mm Solid Carbide Drill 6xD for Hardened Steel 2 Flute TiAlN Coating
Regular price
$26.20 USD
Regular price
$0.00 USD
Sale price
$26.20 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
YG-1
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 10.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.3 mm | Tool Type | High Hardened Steels (HRc50-HRc70) |
| Length Group | 6xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | DH500 |
| Applicable Material | | Steel | | Usable Length (LU) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 63 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 111 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round |
