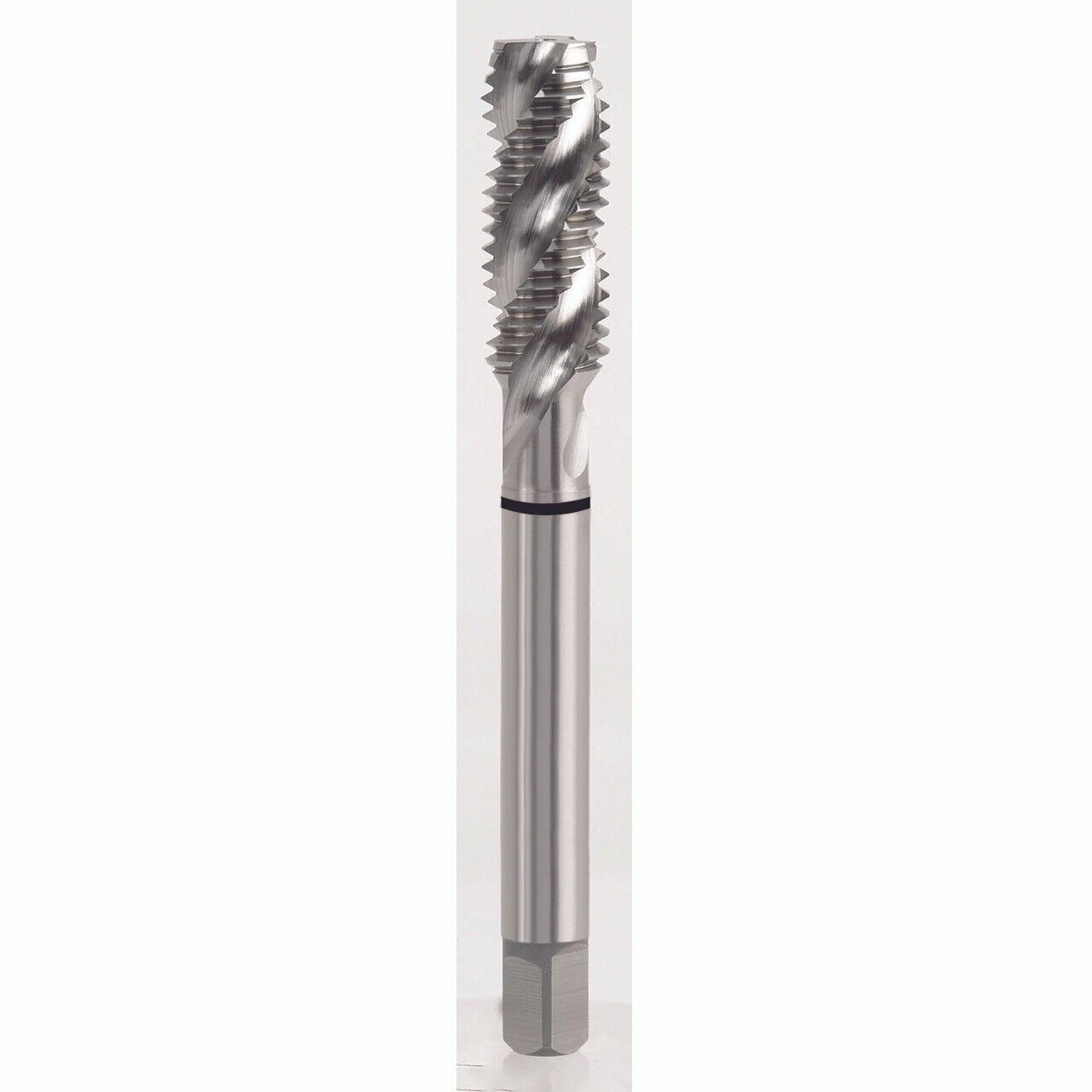

YG 12-24 HSS-EX Spiral Flute Tap 3 Flute H3 Modified Bottoming Black Ring Tap

YG 12-24 HSS-EX Spiral Flute Tap 3 Flute H3 Modified Bottoming Black Ring Tap

$4.00 USD
$0.00 USD $4.00 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

11 in stock
YG-1

HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP

Product Specifications
EDP Number T2363
Size & Pitch #12-24
Diameter (Decimal Inch) 0.2160"
Diameter (mm) 5.49mm
Overall Length (Decimal Inch) 2.3800"
Length/Diameter 2.5xD
Chamfer Type Modified Bottoming
Overall Length (mm) 60.45mm
Thread Length (Decimal Inch) 0.3540"
Thread Length (mm) 8.99mm
Square Length (Decimal Inch) 0.2800"
Square Length (mm) 7.11mm
Shank Diameter (Decimal Inch) 0.2200"
Shank Diameter (mm) 5.59mm
Square Size (Decimal Inch) 0.1650"
Square Size (mm) 4.19mm
Neck Diameter (Decimal Inch) 0.1570"
Connection (mm) 5.59 x 4.19mm
Connection (Decimal Inch) 0.22 x 0.165"
Useable Length (Decimal Inch) 0.9060"
Neck Diameter (mm) 3.99mm
Drill Size (Decimal Inch) 0.1781"
Drill Size (mm) 4.52mm
Useable Length (mm) 23.01mm
Thread Series UNC
Pitch Limit H3
Chamfer Length 2P-3P
Finish Bright
Blank Standard 302A
Helix Angle (Degree) 40 Degree
Number of Flutes 3
Tap Type SPFL
Shank Type Square
Coolant Through No
Ring Color Black
Trade Name Combo Tap
Series T2
Material HSS-EX
Product Type Spiral Flute Tap
