Michigan Wholesale Tool Supply

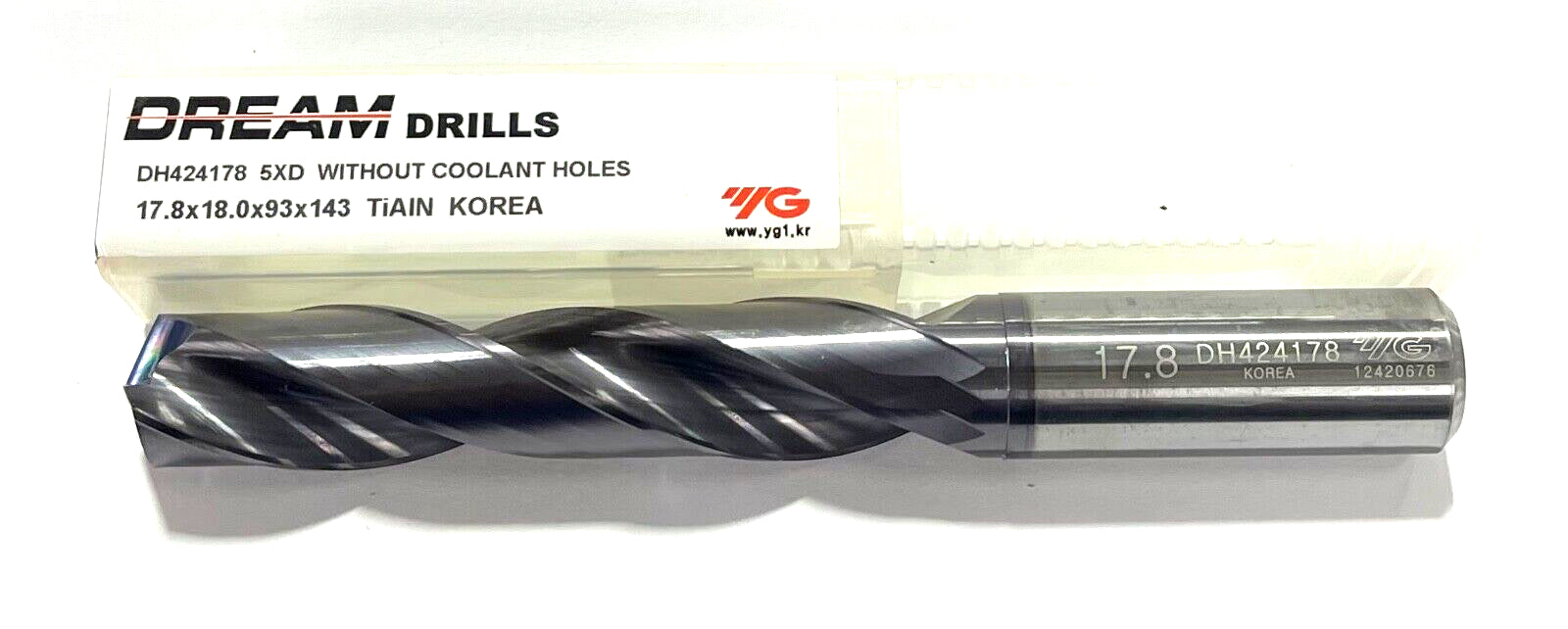

YG 17.8mm Solid Carbide Drill 5xD TiAlN Coating 140° Point 2 Flute DH424178
YG 17.8mm Solid Carbide Drill 5xD TiAlN Coating 140° Point 2 Flute DH424178
Regular price
$39.67 USD
Regular price
$0.00 USD
Sale price
$39.67 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
YG-1
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 17.8 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.8 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Carbide Dream Drill - 5xD |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | | Series/List # | DH424 |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Usable Length (LU) | 93 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 93 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 143 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
