Michigan Wholesale Tool Supply

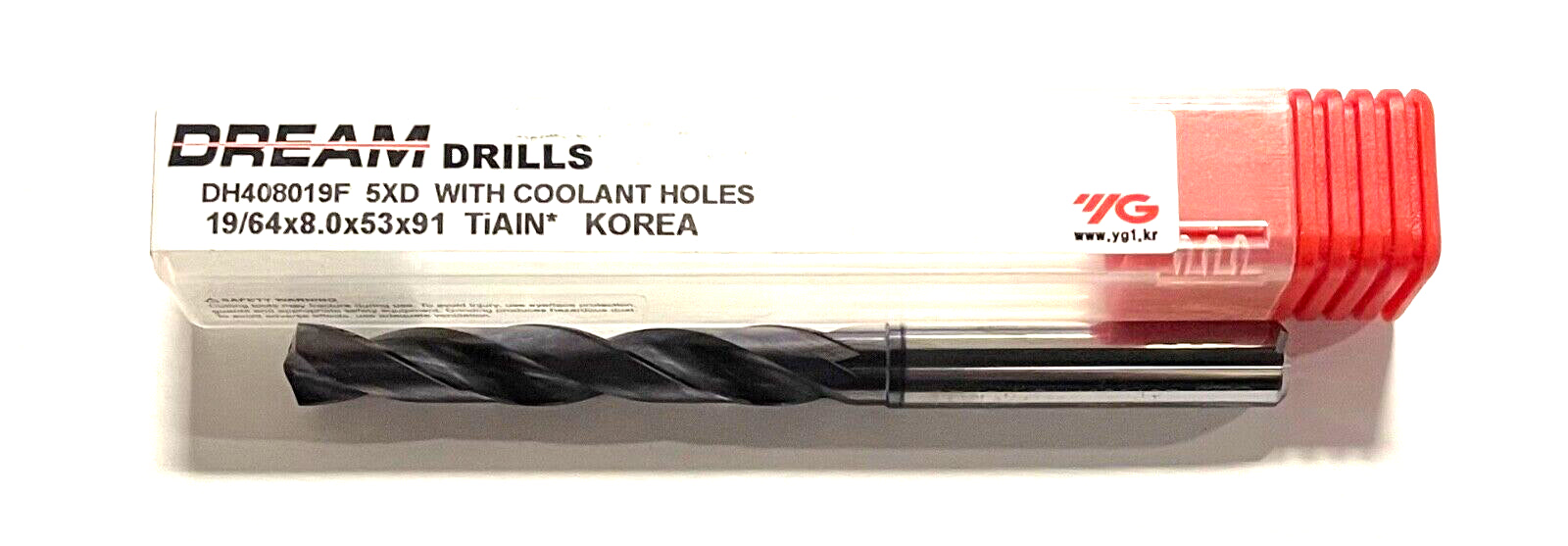

YG 19/64" Solid Carbide Drill 5xD TiAlN Coating Coolant Thru 2 Flute DH408019F
YG 19/64" Solid Carbide Drill 5xD TiAlN Coating Coolant Thru 2 Flute DH408019F
Regular price
$16.38 USD
Regular price
$0.00 USD
Sale price
$16.38 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
YG-1
SOLID CARBIDE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 19/64″ | Shank Type | Cylindrical |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/64″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2969″ | Tool Type | Carbide Dream Drill w/Coolant - 5xD |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | DH408 |
| Applicable Material | Steel | Usable Length (LU) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 53 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 91 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
