Michigan Wholesale Tool Supply

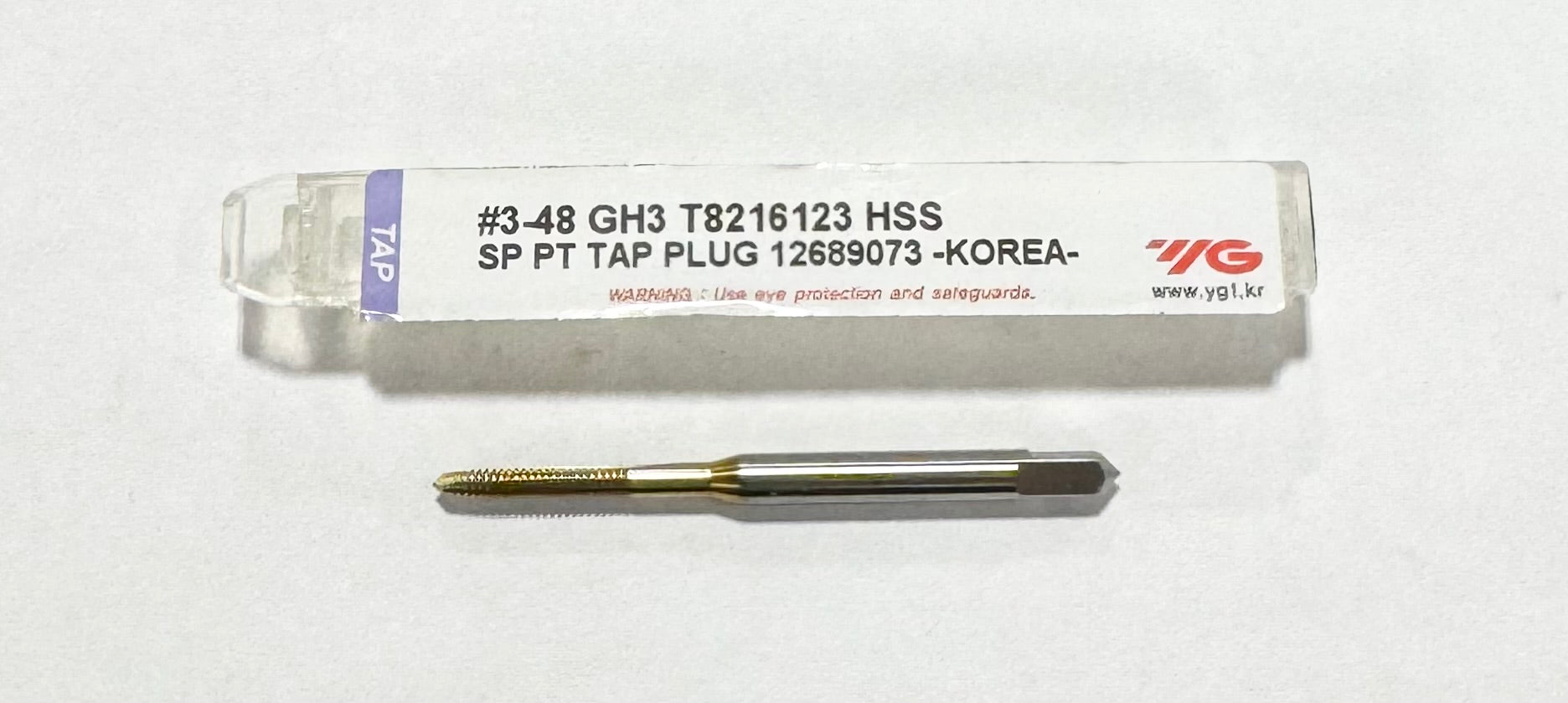

YG 3-48 HSS Spiral Point Plug Tap Tin Coated 2 Flute GH3
YG 3-48 HSS Spiral Point Plug Tap Tin Coated 2 Flute GH3
Regular price
$4.68 USD
Regular price
$0.00 USD
Sale price
$4.68 USD
Unit price
/
per
Shipping calculated at checkout.
19 in stock
Couldn't load pickup availability
Product Specifications
| EDP Number | T8216123 |
| Size & Pitch | #3-48 |
| Diameter (Decimal Inch) | 0.0990" |
| Diameter (mm) | 2.51mm |
| Overall Length (Decimal Inch) | 1.8100" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 45.97mm |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.0801" |
| Drill Size (mm) | 2.03mm |
| Useable Length (mm) | 12.70mm |
| Useable Length (Decimal Inch) | 0.5000" |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Connection (mm) | 3.58 x 2.79mm |
| Series | T8216 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | TiN |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 2 |
| Material | HSS |
| Product Type | Spiral Point Tap |
