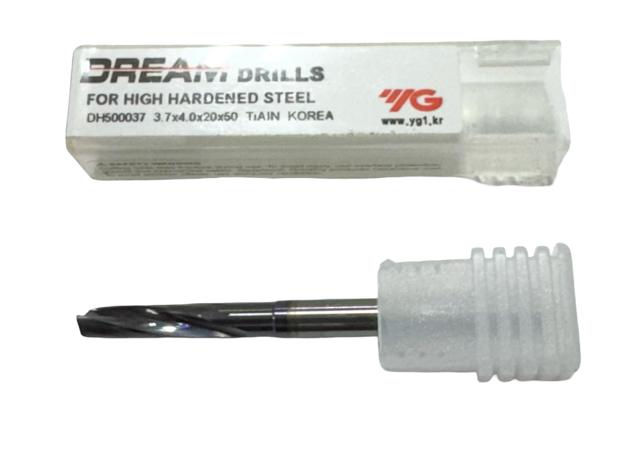

YG 3.7mm Solid Carbide Drill 5xD TiAlN Coated 2 Flute 140°
YG 3.7mm Solid Carbide Drill 5xD TiAlN Coated 2 Flute 140°
Regular price
$8.99 USD
Regular price
$0.00 USD
Sale price
$8.99 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
20 in stock
Couldn't load pickup availability
YG 3.7mm Solid Carbide Drill 5xD TiAlN Coated 140° for High Hardened Steel
PRODUCT DESCRIPTION
| Description | SC Drill; 3.7 mm Dia. x 4 mm Shank Dia. x 50 mm OAL x 20 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series DH500 |
|---|---|
| Brand | YG-1 Cutting Tools |
| Coating | TiAlN |
| Connection Diameter Machine Side Dconms | 4 mm |
| Coolant Supply Property CSP | External |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1457" |
| Drill Bit Size Cutting Diameter DC | 3.7 mm |
| Drill Bit Size Cutting Diameter DC Inch | 0.1457" |
| Drill Bit Size Cutting Diameter DC Metric | 3.7 mm |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 15 Degrees |
| Length Chip Flute LCF | 20 mm |
| Length Group | 5xD |
| Measurement Type | Metric |
| Overall Length Oal | 50 mm |
| Point Angle Sig | 140 Degrees |
| Point Length PL | 0.6733 mm |
| Serieslist | DH500 |
| Shank Type | Cylindrical |
| Tool Type | High Hardened Steels (HRc50-HRc70) |
| Trade Name | Dream Drill |
| Usable Length Lu | 20 mm |
