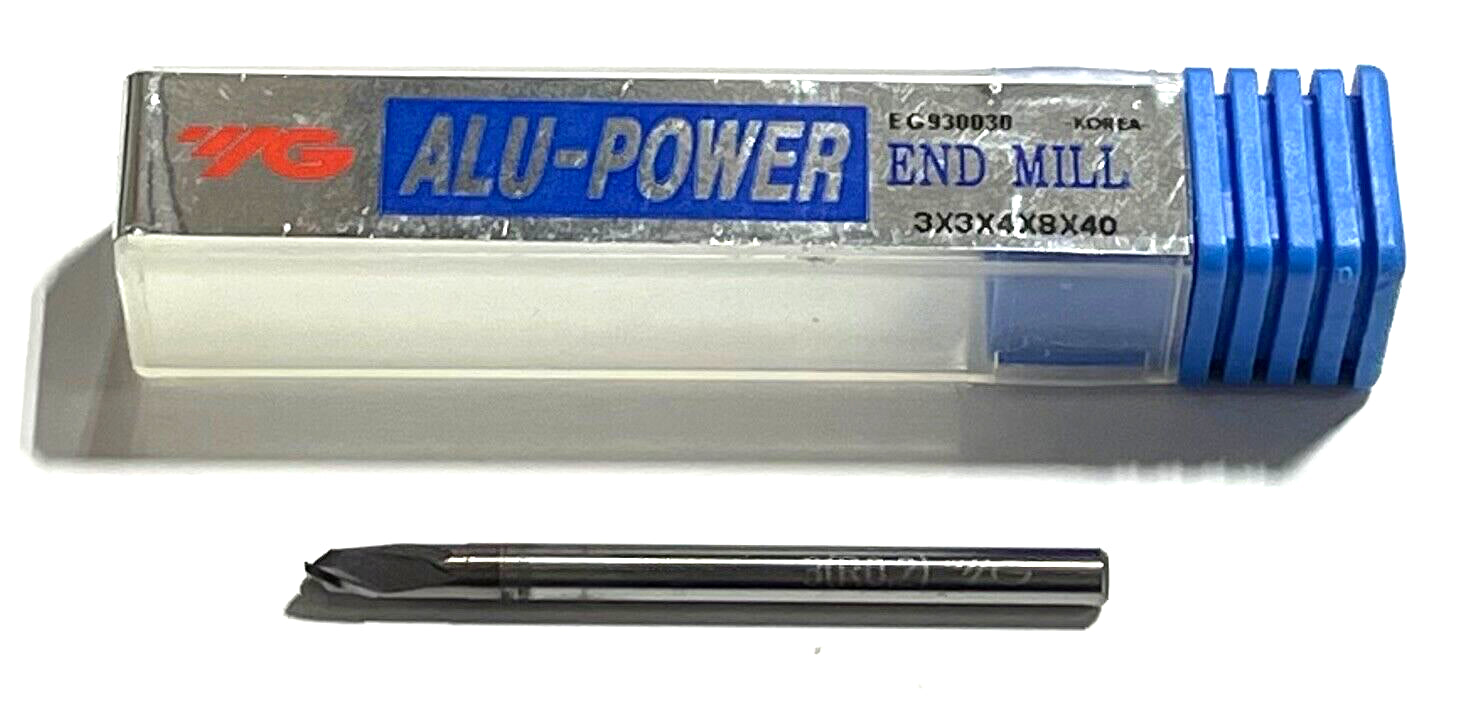

YG 3mm Carbide End Mill TiCN Coating 0.2mm Radius 2 Flute Stub Length ALU-POWER
YG 3mm Carbide End Mill TiCN Coating 0.2mm Radius 2 Flute Stub Length ALU-POWER
Regular price
$5.46 USD
Regular price
$0.00 USD
Sale price
$5.46 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
13 in stock
Couldn't load pickup availability
YG
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 3 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 4 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 40 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 2.9 mm |
| Coating | TiCN | Tool Type | Carbide, 2 Flute 25 Degrees Helix Stub Cut Length Corner Radius TiCN Coated |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | 25 Degrees | Measurement Type | Metric |
| Shank Type | Plain | Series/List # | EG930 |
